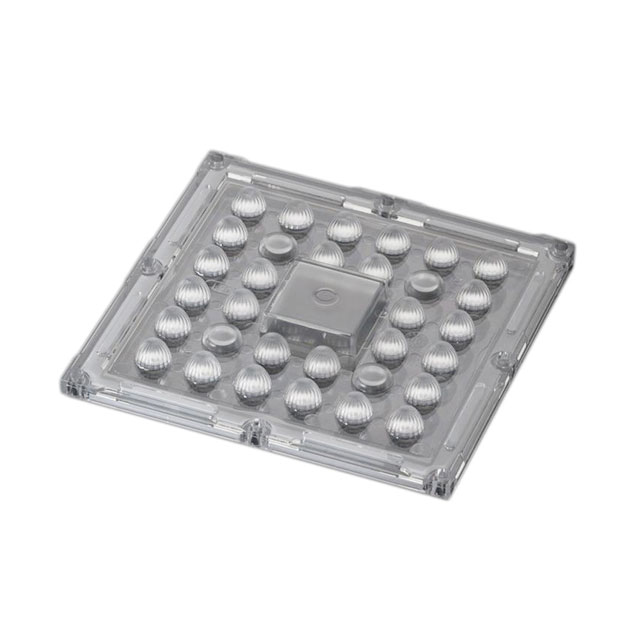

CS16322_STRADELLA-IP-28-HB-S

Active

LEDiL

ASSEMBLY SQUARE 28 POS 100 X 100MM (D) 9/ FOAM TRAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDiL

ASSEMBLY SQUARE 28 POS 100 X 100MM (D) 9/ FOAM TRAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	CS16322_STRADELLA-IP-28-HB-S

Color	Clear
For Use With/Related Manufacturer	Lumileds, Nichia, Cree, Seoul, Samsung
Lens Size [x]	100 mm
Lens Size [y]	100 mm
Lens Style	Square with Domed Top
Mounting Type	Screw
Number of LEDs [custom]	32
Type	Lens
Viewing Angle [Max]	38 °
Viewing Angle [Min]	25 °

Part	Type	For Use With/Related Manufacturer	Mounting Type	Number of LEDs [custom]	Color	Lens Size [y]	Lens Size [x]	Viewing Angle [Max]	Viewing Angle [Min]	Lens Style
LEDiL CS16322_STRADELLA-IP-28-HB-S	Lens	Cree Lumileds Nichia Samsung Seoul	Screw	32	Clear	100 mm	100 mm	38 °	25 °	Square with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens Clear 25° ~ 38° Screw
