AXG220144

Active

Panasonic Electric Works

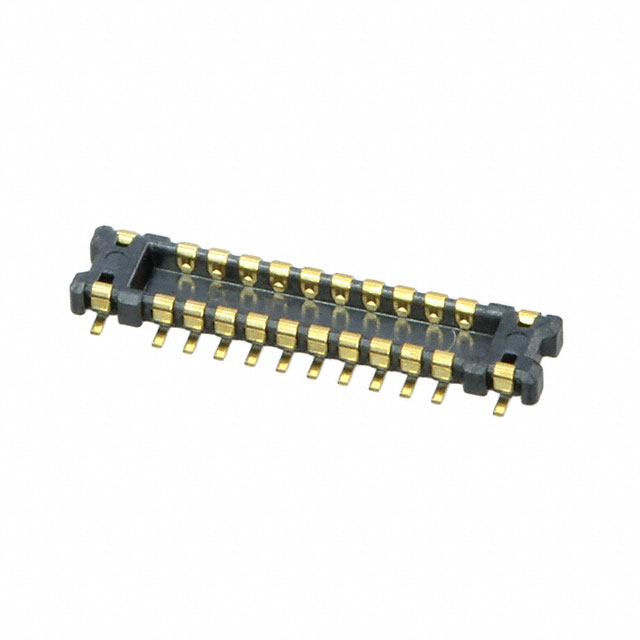

CONN HDR 20POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXG220144

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.46 mm
Height Above Board	0.018 in
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Number of Rows	Mounting Type	Mated Stacking Heights	Features	Contact Finish	Height Above Board	Height Above Board
Panasonic Electric Works AXG220144	0.35 mm	0.014 in	20	Header Outer Shroud Contacts	2	Surface Mount	0.6 mm	Solder Retention	Gold	0.46 mm	0.018 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	15000	$ 0.42

General part information

20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
