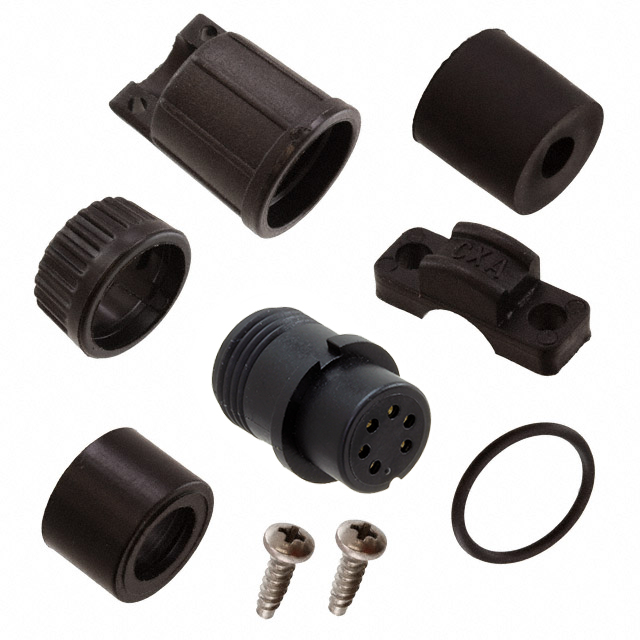

3282-6SG-528

Active

Conxall/Switchcraft

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3282-6SG-528

Active

Conxall/Switchcraft

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3282-6SG-528	3282-6S Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	8.13 mm
Cable Opening [Max] [diameter]	7.37 mm	6.86 - 7.37 mm
Cable Opening [Max] [diameter]	0.29 in	0.27 - 0.32 in
Cable Opening [Min] [diameter]	7.11 mm	6.1 - 7.62 mm
Cable Opening [Min] [diameter]	0.28 in	0.24 - 0.3 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3282-6S Series

CONN PLUG FMALE 6P GOLD SLDR CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Type	Backshell Material, Plating	Primary Material	Ingress Protection	Color	Contact Material	Current Rating (Amps)	Features	Contact Finish - Mating	Orientation	Mounting Type	Number of Positions	Fastening Type	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3282-6SG-3DC	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded
Conxall/Switchcraft 3282-6SG-528	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell, Cable Clamp	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded	7.37 mm	7.11 mm	0.29 in	0.28 in
Conxall/Switchcraft 3282-6SG-315	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded					0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-6SG-524	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell, Cable Clamp	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded	6.86 mm	6.1 mm	0.27 in	0.24 in
Conxall/Switchcraft 3282-6SG-515	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell, Cable Clamp	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded					0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-6SG-530	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell, Cable Clamp	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded		7.62 mm	0.32 in	0.3 in			8.13 mm
Conxall/Switchcraft 3282-6SG-324	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded	6.86 mm	6.1 mm	0.27 in	0.24 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.90
		10	$ 15.51
		25	$ 14.70
		50	$ 14.49
		100	$ 12.79
		300	$ 11.93
		500	$ 11.68

Description

General part information

3282-6S Series

6 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors
