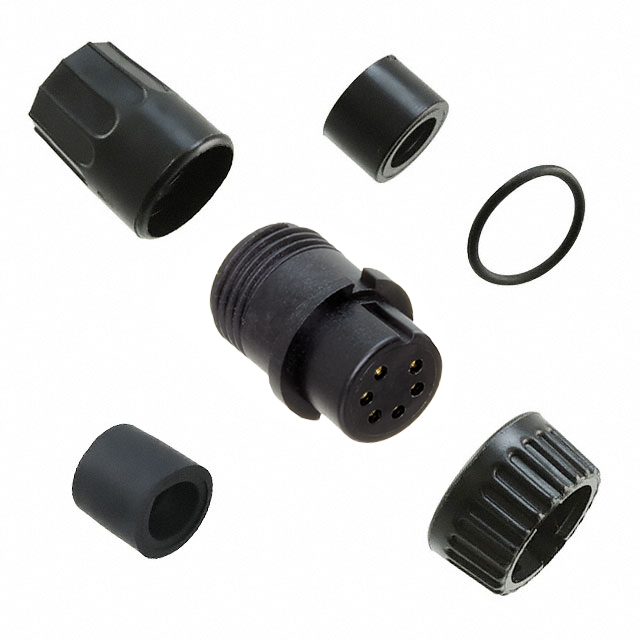

3282-6SG-315

Active

Conxall/Switchcraft

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3282-6SG-315

Active

Conxall/Switchcraft

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.11
		10	$ 11.99
		25	$ 11.24
		50	$ 10.71
		100	$ 10.20
		300	$ 9.44
		500	$ 9.10
		1000	$ 8.67

Description

General part information

3282-6S Series

6 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3282-6SG-315	3282-6S Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	6.86 - 7.37 mm
Cable Opening	-	6.1 - 7.62 mm
Cable Opening	-	0.27 - 0.32 in
Cable Opening	-	0.24 - 0.3 in
Cable Opening	-	8.13 mm
Cable Opening [custom]	0.17 in, 0.15 in	0.15 - 0.17 in
Cable Opening [custom]	3.81 mm, 4.32 mm	3.81 - 4.32 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3282-6S Series

CONN PLUG FMALE 6P GOLD SLDR CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Type	Backshell Material, Plating	Primary Material	Ingress Protection	Color	Contact Material	Current Rating (Amps)	Features	Contact Finish - Mating	Orientation	Mounting Type	Number of Positions	Fastening Type	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3282-6SG-3DC	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded
Conxall/Switchcraft 3282-6SG-528	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell, Cable Clamp	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded	7.37 mm	7.11 mm	0.29 in	0.28 in
Conxall/Switchcraft 3282-6SG-315	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded					0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-6SG-524	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell, Cable Clamp	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded	6.86 mm	6.1 mm	0.27 in	0.24 in
Conxall/Switchcraft 3282-6SG-515	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell, Cable Clamp	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded					0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-6SG-530	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell, Cable Clamp	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded		7.62 mm	0.32 in	0.3 in			8.13 mm
Conxall/Switchcraft 3282-6SG-324	-40 °C	115 °C	600 V	Female Sockets, Plug	Nylon, Polyamide (PA)	Plastic	Weathertight	Black	Brass	5.6 A	Backshell	Gold	Keyed	Free Hanging (In-Line)	6	Bayonet Lock	Unshielded	6.86 mm	6.1 mm	0.27 in	0.24 in
