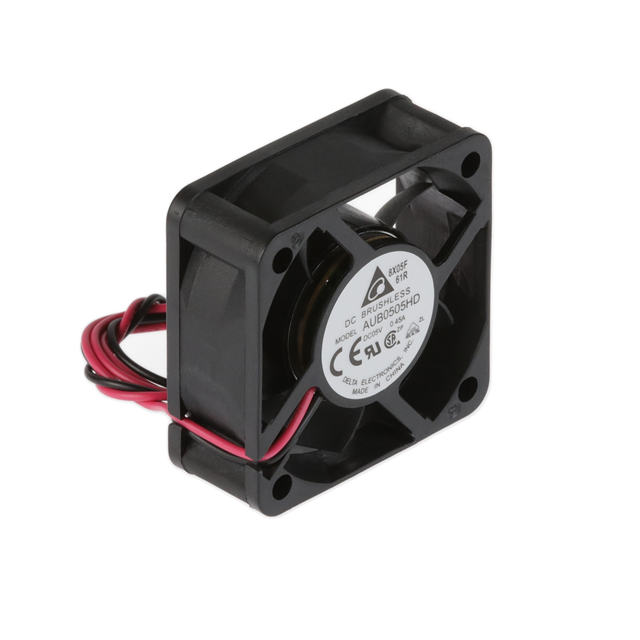

AUB0505HD

Obsolete

Delta Electronics

FAN AXIAL 50X20MM 5VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 50X20MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Weight	Weight	Material - Blade	Lifetime @ Temp.	Material - Frame	Approval Agency	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Noise	Power (Watts)	Static Pressure	Static Pressure	RPM	Bearing Type	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Termination	Voltage - Rated
Delta Electronics AUB0505HD	38.56 g	0.085 lb	Plastic	50000 Hrs	Plastic	CE CSA UL VDE	0.442 m³/min	15.8 CFM	50 mm	50 mm	Tubeaxial	4.5 V	5.5 V	33 dB(A)	1.65 W	45.3 Pa	0.182 in H2O	5600 RPM	Superflo	20 mm	70 °C	70 °C	-10 °C	-10 °C	0.33 A	2 Wire Leads	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 5VDC Square - 50mm L x 50mm H Superflo 15.8 CFM (0.442m³/min) 2 Wire Leads

Technical documentation and resources
