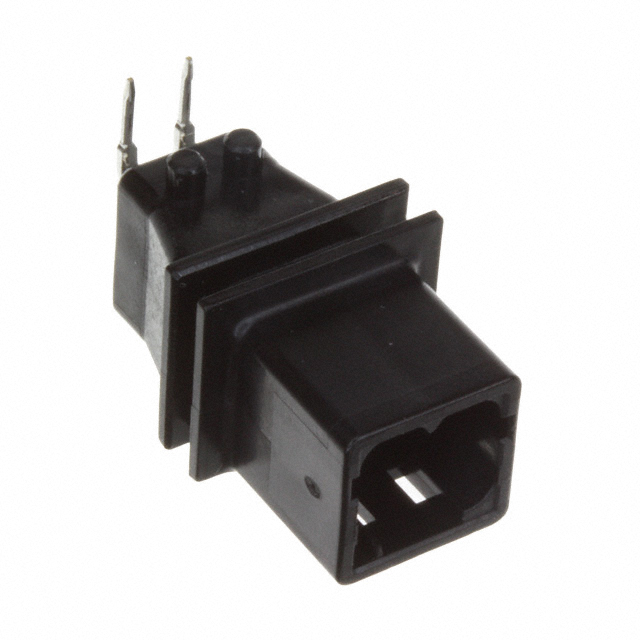

Specification	MX44002NF1

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.122 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Waterproof
Insulation Color	Black
Insulation Height	0.465 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.138 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

MX44002N Series

Part	Pitch - Mating	Contact Shape	Insulation Height	Contact Material	Number of Rows	Mounting Type	Number of Positions Loaded	Features	Fastening Type	Ingress Protection	Contact Finish - Mating	Connector Type	Number of Positions	Insulation Material	Contact Length - Post	Contact Type	Insulation Color	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Shrouding	Contact Finish - Post	Style	Current Rating	Applications
JAE Electronics MX44002NF1	0.138 in	Square	0.465 in	Brass	1	Board Edge Right Angle Through Hole	All	Board Guide	Latch Holder	Waterproof	Tin	Header	2	Glass Filled Polybutylene Terephthalate (PBT)	0.122 in	Male Pin	Black	125 °C	-40 °C	Solder	Shrouded - 4 Wall	Tin	Board Cable/Wire	3 A	Automotive
