1584949

Active

Phoenix Contact

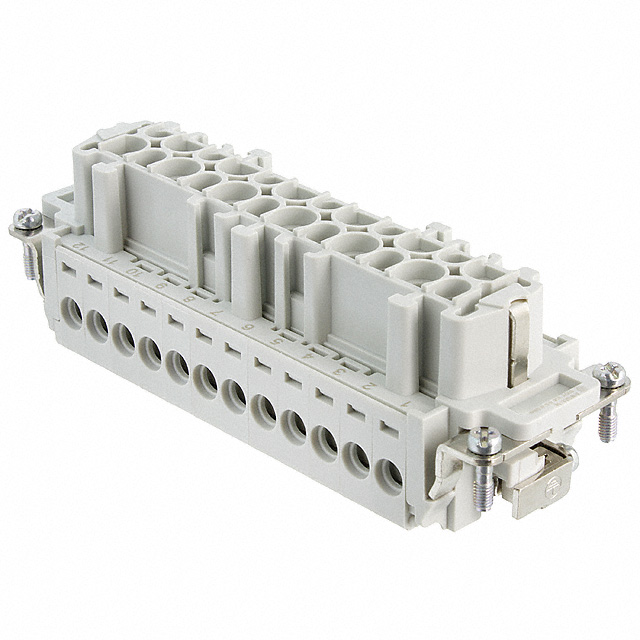

HEAVY DUTY POWER CONNECTORS FEMALE B24 24P 25-48 PRINTED SCREW

Search across all available documentation for this part.

Active

Phoenix Contact

HEAVY DUTY POWER CONNECTORS FEMALE B24 24P 25-48 PRINTED SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	1584949

Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	B24
Termination Style	Screw
Voltage Rating	600 V

Heavy Duty Power Connectors Female B24 24P 25-48 Printed Screw

Part	Size	Termination Style	Current Rating (Amps)	Contact Material	Contact Finish	Voltage Rating	Material Flammability Rating	Gender	Operating Temperature [Max]	Operating Temperature [Min]
Phoenix Contact 1584949	B24	Screw	16 A	Copper Alloy	Silver	600 V	UL94 V-0	Female	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heavy Duty Power Connectors Female B24 24P 25-48 Printed Screw
