Specification	0737803946

Color	Black
Connector Style	HDM
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Current Rating	100 mA
Features	Stackable
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	24
Number of Positions	144
Number of Positions Loaded	All
Number of Rows	6
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.079 in
Termination	Press-Fit
Voltage Rating	250 V

073780 Series

Part	Features	Connector Style	Termination	Connector Type	Mounting Type	Pitch	Contact Finish	Number of Rows	Number of Positions Loaded	Connector Usage	Number of Positions	Color	Number of Columns	Voltage Rating	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness	Current Rating
Molex 0737803254	Stackable	HDM	Press-Fit	Female Sockets Receptacle	Through Hole	0.079 in	Gold	6	All	Daughtercard	144	Black	24	250 V	UL94 V-0	-55 °C	105 °C
Molex 0737800147	Stackable	HDM	Solder	Female Sockets Receptacle	Through Hole	0.079 in	Gold	6	All	Daughtercard	72	Black	12	250 V	UL94 V-0	-55 °C	105 °C	30 µin

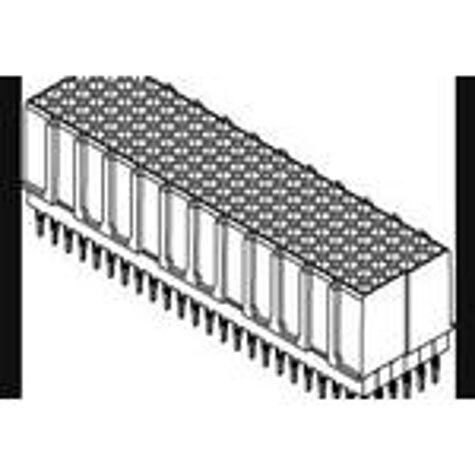

Molex 0737803153	Stackable	HDM	Press-Fit	Female Sockets Receptacle	Through Hole	0.079 in	Gold	6	All	Daughtercard	144	Black	24	250 V	UL94 V-0	-55 °C	105 °C
Molex 0737802257	Stackable	HDM	Press-Fit	Female Sockets Receptacle	Through Hole	0.079 in	Gold	6	All	Daughtercard	72	Black	12	250 V	UL94 V-0	-55 °C	105 °C
Molex 0737801237	Stackable	HDM	Solder	Female Sockets Receptacle	Through Hole	0.079 in	Gold	6	All	Daughtercard	144	Black	24	250 V	UL94 V-0	-55 °C	105 °C	30 µin
Molex 0737803946	Stackable	HDM	Press-Fit	Female Sockets Receptacle	Through Hole	0.079 in	Gold	6	All	Daughtercard	144	Black	24	250 V	UL94 V-0	-55 °C	105 °C		100 mA
Molex 0737800243	Stackable	HDM	Solder	Female Sockets Receptacle	Through Hole	0.079 in	Gold	6	All	Daughtercard	72	Black	12	250 V	UL94 V-0	-55 °C	105 °C	30 µin
Molex 0737803257	Stackable	HDM	Press-Fit	Female Sockets Receptacle	Through Hole	0.079 in	Gold	6	All	Daughtercard	144	Black	24	250 V	UL94 V-0	-55 °C	105 °C
Molex 0737801254	Stackable	HDM	Solder	Female Sockets Receptacle	Through Hole	0.079 in	Gold	6	All	Daughtercard	144	Black	24	250 V	UL94 V-0	-55 °C	105 °C	30 µin
Molex 0737800143	Stackable	HDM	Solder	Female Sockets Receptacle	Through Hole	0.079 in	Gold	6	All	Daughtercard	72	Black	12	250 V	UL94 V-0	-55 °C	105 °C	30 µin	1 A
