SAM9X60D1GT-I/4FB

Active

Microchip Technology

ARM926 MPU,BGA,IND TEMP,1GBIT DDR2,T&R 233 TFBGA 14X14X1.2MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

SAM9X60D1GT-I/4FB

Active

Microchip Technology

ARM926 MPU,BGA,IND TEMP,1GBIT DDR2,T&R 233 TFBGA 14X14X1.2MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

SAM9X60 Series

The SAM9X60D6K is a high-performance, ultra-low-power ARM926EJ-S CPU-based embedded microprocessor (MPU) running up to 600 MHz, with 64Mbit integrated SDRAM memory. The SAM9X60D6K supports various NVM interfaces, including NAND Flash, Quad SPI and eMMC Flash. The device integrates powerful peripherals for connectivity and user interface applications. It offers State-of-the-Art security functions such as Secure

Boot capability with on-chip secure key storage (OTP), high-performance crypto accelerators (SHA, AES and TDES) as well as tamper pins.

Microchip offers for different supply configurations, fully tested power management solutions respecting the SAM9X60D6K power sequencing specifications. Go to **[Treelinktool](https://www.microchip.com/Treelinktool)** under DC/DC converters, SAM9X60 and SDRAM for further information.

Technical Specifications

Parameters and characteristics for this part

Specification	SAM9X60D1GT-I/4FB

Bus Width	32 Bit
Core Processor	ARM926EJ-S
Display & Interface Controllers	LCD, Touchscreen, Keyboard
Ethernet Ports	2
Ethernet Speed Options	10Mbps, 100Mbps
Graphics Acceleration	Yes
Mounting Type	Surface Mount
Number of Cores	1 Core
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	233-TFBGA
Package Length	14 mm
Package Name	233-TFBGA
Package Width	14 mm
RAM Controllers	LPSDR, SDR, LPDDR, SRAM, DDR2
Security Features	Secure JTAG, Boot Security, Tamper Pins, Secure RTC, Cryptography, Secure Key Storage, Memory Scrambling
Speed	600 MHz
USB	USB 2.0
USB 2.0 Count	3 count
Voltage - I/O	3.3 V

SAM9X60 Series

SAM9X60D5M

Part	Security Features	USB 2.0 Count	USB	Voltage - I/O	Speed	Bus Width	Number of Cores	Package / Case	RAM Controllers	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Package Width	Package Length	Display & Interface Controllers	Graphics Acceleration	Core Processor	Ethernet Ports	Ethernet Speed Options	Mounting Type	Additional Interfaces	Voltage - I/O (Option 2)	Voltage - I/O (Option 1)
Microchip Technology SAM9X60D1G-I/4FB	Boot Security Cryptography Memory Scrambling Secure JTAG Secure Key Storage Secure RTC Tamper Pins	3 count	USB 2.0	3.3 V	600 MHz	32 Bit	1 Core	233-TFBGA	DDR2 LPDDR LPSDR SDR SRAM	85 °C	-40 °C	233-TFBGA	14 mm	14 mm	Keyboard LCD Touchscreen	Yes	ARM926EJ-S	2	100Mbps 10Mbps	Surface Mount
Microchip Technology SAM9X60-V/DWB	Boot Security Cryptography Memory Scrambling Secure JTAG Secure Key Storage Secure RTC Tamper Pins	3 count	USB 2.0	3.3 V	600 MHz	32 Bit	1 Core	228-TFBGA	DDR2 LPDDR LPSDR SDR SRAM	105 °C	-40 °C	228-TFBGA	11 mm	11 mm	Keyboard LCD Touchscreen	Yes	ARM926EJ-S	2	100Mbps 10Mbps	Surface Mount
Microchip Technology SAM9X60D5MT-I/4FB	Boot Security Cryptography Memory Scrambling Secure JTAG Secure Key Storage Secure RTC Tamper Pins	3 count	USB 2.0	3.3 V	600 MHz	32 Bit	1 Core	233-TFBGA	DDR2 LPDDR LPSDR SDR SRAM	85 °C	-40 °C	233-TFBGA	14 mm	14 mm	Keyboard LCD Touchscreen	Yes	ARM926EJ-S	2	100Mbps 10Mbps	Surface Mount
Microchip Technology SAM9X60D1GT-I/4FB	Boot Security Cryptography Memory Scrambling Secure JTAG Secure Key Storage Secure RTC Tamper Pins	3 count	USB 2.0	3.3 V	600 MHz	32 Bit	1 Core	233-TFBGA	DDR2 LPDDR LPSDR SDR SRAM	85 °C	-40 °C	233-TFBGA	14 mm	14 mm	Keyboard LCD Touchscreen	Yes	ARM926EJ-S	2	100Mbps 10Mbps	Surface Mount
Microchip Technology SAM9X60T-V/DWBVAO	AES Boot Security Cryptography Memory Scrambling Secure JTAG Secure Key Storage Secure RTC SHA Tamper Pins TDES	5 count	USB 2.0		600 MHz	32 Bit	1 Core	228-TFBGA	DDR2 LPDDR LPSDR SRAM	105 °C	-40 °C	228-TFBGA	11 mm	11 mm	Keyboard LCD Touchscreen	Yes	ARM926EJ-S	2	100Mbps 10Mbps	Surface Mount	CAN EBI EMI I2C MMC/SD/SDIO SPI SSC UART/USART	3.3 V	1.8 V
Microchip Technology SAM9X60D6KT-I/4GB	Boot Security Cryptography Memory Scrambling Secure JTAG Secure Key Storage Secure RTC Tamper Pins	5 count	USB 2.0		600 MHz	32 Bit	1 Core	196-TFBGA	LPDDR LPSDR SDR SRAM	85 °C	-40 °C	196-TFBGA	11 mm	11 mm	Keyboard LCD Touchscreen	Yes	ARM926EJ-S	2	100Mbps 10Mbps	Surface Mount	CAN EBI EMI I2C MMC/SD/SDIO SPI SSC UART/USART	3.3 V	1.8 V
Microchip Technology SAM9X60D6K-I/4GB	Boot Security Cryptography Memory Scrambling Secure JTAG Secure Key Storage Secure RTC Tamper Pins	5 count	USB 2.0		600 MHz	32 Bit	1 Core	196-TFBGA	LPDDR LPSDR SDR SRAM	85 °C	-40 °C	196-TFBGA	11 mm	11 mm	Keyboard LCD Touchscreen	Yes	ARM926EJ-S	2	100Mbps 10Mbps	Surface Mount	CAN EBI EMI I2C MMC/SD/SDIO SPI SSC UART/USART	3.3 V	1.8 V
Microchip Technology SAM9X60D5M-I/4FB	Boot Security Cryptography Memory Scrambling Secure JTAG Secure Key Storage Secure RTC Tamper Pins	3 count	USB 2.0	3.3 V	600 MHz	32 Bit	1 Core	233-TFBGA	DDR2 LPDDR LPSDR SDR SRAM	85 °C	-40 °C	233-TFBGA	14 mm	14 mm	Keyboard LCD Touchscreen	Yes	ARM926EJ-S	2	100Mbps 10Mbps	Surface Mount
Microchip Technology SAM9X60T-V/DWB	Boot Security Cryptography Memory Scrambling Secure JTAG Secure Key Storage Secure RTC Tamper Pins	3 count	USB 2.0	3.3 V	600 MHz	32 Bit	1 Core	228-TFBGA	DDR2 LPDDR LPSDR SDR SRAM	105 °C	-40 °C	228-TFBGA	11 mm	11 mm	Keyboard LCD Touchscreen	Yes	ARM926EJ-S	2	100Mbps 10Mbps	Surface Mount

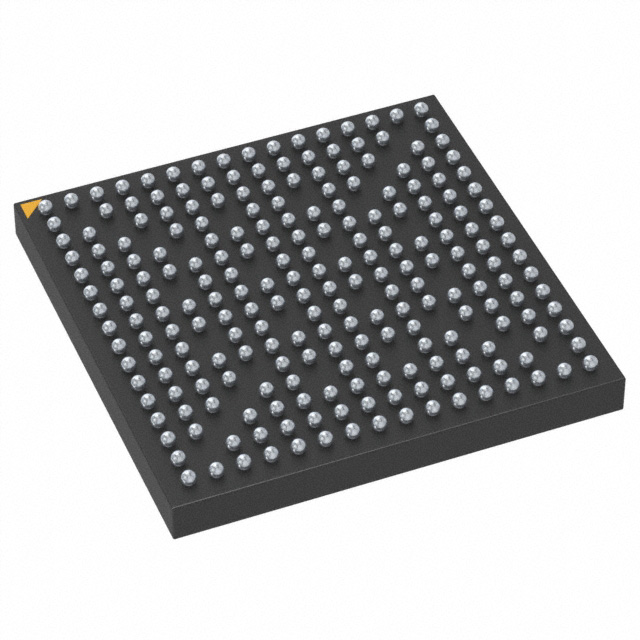

Microchip Technology SAM9X60-V/DWBVAO	AES Boot Security Cryptography Memory Scrambling Secure JTAG Secure Key Storage Secure RTC SHA Tamper Pins TDES	5 count	USB 2.0		600 MHz	32 Bit	1 Core	228-TFBGA	DDR2 LPDDR LPSDR SRAM	105 °C	-40 °C	228-TFBGA	11 mm	11 mm	Keyboard LCD Touchscreen	Yes	ARM926EJ-S	2	100Mbps 10Mbps	Surface Mount	CAN EBI EMI I2C MMC/SD/SDIO SPI SSC UART/USART	3.3 V	1.8 V
