EN3L2M16X

Active

Switchcraft Inc.

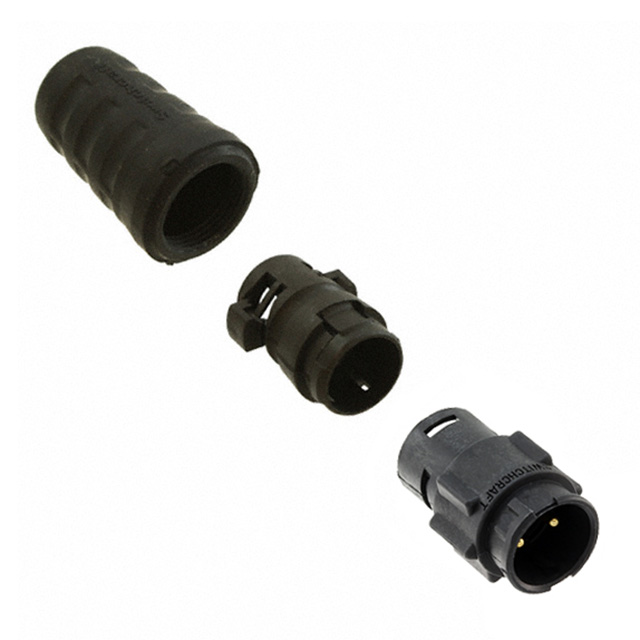

CONN RCPT MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3L2M16X

Active

Switchcraft Inc.

CONN RCPT MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.26
		10	$ 7.87
		25	$ 7.11
		50	$ 6.59
		100	$ 6.13
		300	$ 5.47
		500	$ 5.20
		1000	$ 4.87

Description

General part information

EN3L2M Series

2 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3L2M16X	EN3L2M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	5.84 mm
Cable Opening	-	0.38 in
Cable Opening	-	9.65 mm
Cable Opening	-	0.23 in
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3L2M Series

CONN RCPT MALE 2POS GOLD CRIMP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Ingress Protection	Connector Type	Orientation	Contact Material	Insert Material	Material Flammability Rating	Mounting Type	Applications	Number of Positions	Color	Fastening Type	Backshell Material, Plating	Features	Termination	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Voltage Rating	Current Rating (Amps)	Shielding	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Switchcraft Inc. EN3L2M16CX	65 °C	-40 °C	Gold	IP66/IP68	Male Pins, Receptacle	Keyed	Copper Alloy	Elastomer	UL94 V-0	Free Hanging (In-Line)	General Purpose, Instrumentation, Marine, Medical	2	Black	Bayonet Lock	Thermoplastic	Backshell, Cable Clamp	Crimp	Plastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in	250 VAC	13 A	Unshielded
Switchcraft Inc. EN3L2M16X	65 °C	-40 °C	Gold	IP66/IP68	Male Pins, Receptacle	Keyed	Copper Alloy	Elastomer	UL94 V-0	Free Hanging (In-Line)	General Purpose, Instrumentation, Marine, Medical	2	Black	Bayonet Lock	Thermoplastic	Backshell, Cable Clamp		Plastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in	250 VAC	13 A	Unshielded
Switchcraft Inc. EN3L2M16KX	65 °C	-40 °C	Gold	IP66/IP68	Male Pins, Receptacle	Keyed	Copper Alloy	Elastomer	UL94 V-0	Free Hanging (In-Line)	General Purpose, Instrumentation, Marine, Medical	2	Black	Bayonet Lock	Thermoplastic	Backshell, Cable Clamp		Plastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in	250 VAC	13 A	Unshielded
Switchcraft Inc. EN3L2MCKX	65 °C	-40 °C	Gold	IP66/IP68	Male Pins, Receptacle	Keyed	Copper Alloy	Elastomer	UL94 V-0	Free Hanging (In-Line)	General Purpose, Instrumentation, Marine, Medical	2	Black	Bayonet Lock	Thermoplastic	Backshell, Cable Clamp	Crimp	Plastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in	250 VAC	7.5 A	Unshielded
Switchcraft Inc. EN3L2M16LX	65 °C	-40 °C	Gold	IP66/IP68	Male Pins, Receptacle	Keyed	Copper Alloy	Elastomer	UL94 V-0	Free Hanging (In-Line)	General Purpose, Instrumentation, Marine, Medical	2	Black	Bayonet Lock	Thermoplastic	Backshell, Cable Clamp		Plastic			250 VAC	13 A	Unshielded	5.84 mm	0.38 in	9.65 mm	0.23 in
Switchcraft Inc. EN3L2MCX	65 °C	-40 °C	Gold	IP66/IP68	Male Pins, Receptacle	Keyed	Copper Alloy	Elastomer	UL94 V-0	Free Hanging (In-Line)	General Purpose, Instrumentation, Marine, Medical	2	Black	Bayonet Lock	Thermoplastic	Backshell, Cable Clamp	Crimp	Plastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in	250 VAC	7.5 A	Unshielded
