5202FL 002U1000

Active

Belden Inc.

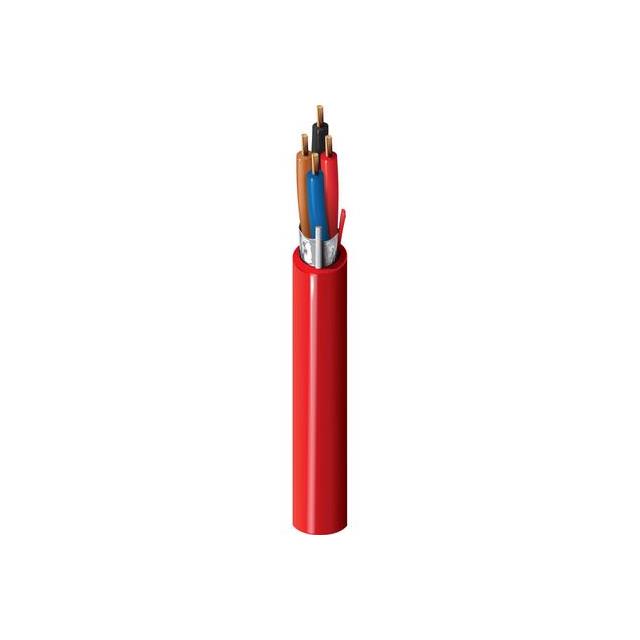

CABLE 4COND 16AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 16AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5202FL 002U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.44 mm
Jacket (Insulation) Diameter [diameter]	0.214 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style FPLR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	16 AWG

Part	Wire Gauge	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length	Length	Voltage	Jacket (Insulation) Material	Shield Coverage	Usage	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Cable Type	Jacket Color	Number of Conductors	Shield Material
Belden Inc. 5202FL 002U1000	16 AWG	Drain Wire Rip Cord	5.44 mm	0.214 in	Polypropylene (PP)	1000 ft	304.8 m	300 V	Poly-Vinyl Chloride (PVC) Riser	100 %	Alarm Safety	Foil	19 Strands	29 AWG	UL Style FPLR	0.432 mm	0.017 in	Copper Bare	Multi-Conductor	Red	4	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.60

General part information

4 Conductor Multi-Conductor Cable Red 16 AWG Foil 1000.0' (304.8m)

Technical documentation and resources

No documents available
