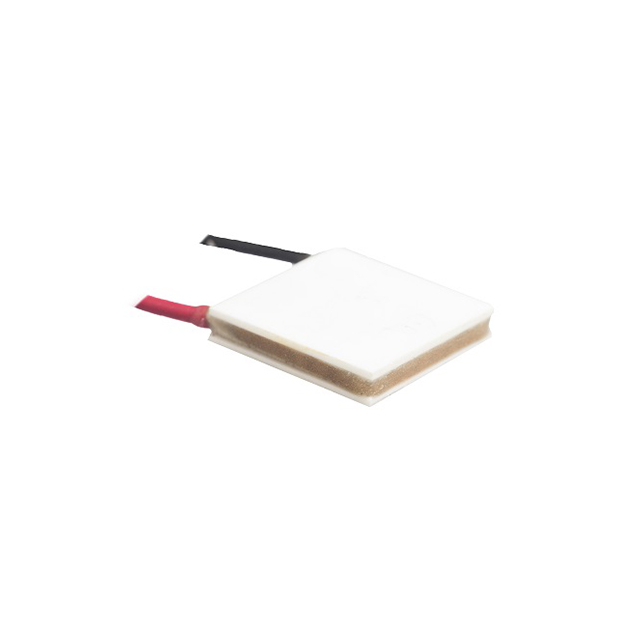

ETH-071-10-13-E-H1 (S20)

Active

European Thermodynamics Ltd

TE HIGH TEMP,71 COUPLES,H1,EPOXY

Search across all available documentation for this part.

Active

European Thermodynamics Ltd

TE HIGH TEMP,71 COUPLES,H1,EPOXY

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 18.0W @ 25°C 3.5 A 150°C

Technical documentation and resources

Part	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Number of Stages	Current - Max [Max]	Features	Height [z]	Operating Temperature	Qmax @ Th	Resistance	Delta Tmax @ Th
European Thermodynamics Ltd ETH-071-14-11-S-H1	30 mm	30 mm	9 V	1	8 A	Lead Wires	3.2 mm	150 °C
European Thermodynamics Ltd ETH-071-14-15-S-H1	30 mm	30 mm	9.1 V	1	6.6 A	Lead Wires, Sealed - Silicone	3.8 mm	150 °C	34 W	1.1 Ohms
European Thermodynamics Ltd ETH-071-10-13-E-H1 (S20)	20 mm	20 mm	8.9 V	1	3.5 A	Lead Wires	3.2 mm	150 °C	18 W		72 °C
European Thermodynamics Ltd ETH-071-14-25-S-H1	30 mm	30 mm	8.6 V	1	3.5 A	Lead Wires, Sealed - Silicone	4.7 mm	150 °C	20 W	1.95 Ohms	75 °C
