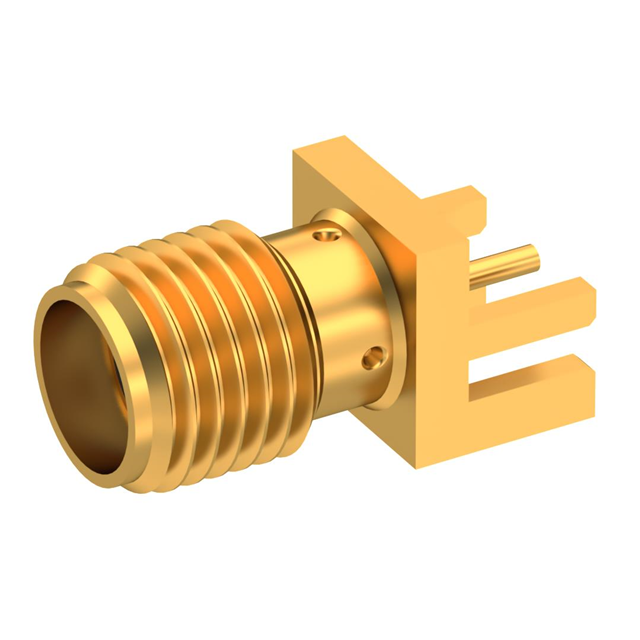

R125423200
ActiveRadiall USA, Inc.
SMA F SMT EDGE C100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R125423200 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
R12542 Series
| Part | Dielectric Material | Mounting Type | Impedance | Contact Termination | Mating Cycles | Connector Type | Housing Color | Center Contact Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | Body Finish | Frequency - Max [Max] | Shield Termination | Center Contact Plating | Connector Style | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Through Hole | 50 Ohms | Solder | 500 | Female Socket Jack | Gold | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | 1 | Gold | 18 GHz | Solder | Gold | SMA | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Board Edge End Launch | 50 Ohms | Solder | 500 | Female Socket Jack | Gold | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | 1 | Gold | 18 GHz | Solder | Gold | SMA | 500 V |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Through Hole | 50 Ohms | Solder | 500 | Female Socket Jack | Gold | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | 1 | Gold | 18 GHz | Solder | Gold | SMA | 500 V |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Board Edge End Launch | 50 Ohms | Solder | 500 | Female Socket Jack | Gold | Beryllium Copper | Stainless Steel | -65 ░C | 165 °C | 1 | Gold | 18 GHz | Solder | Gold | SMA | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.27 | |
| 10 | $ 10.87 | |||
| 25 | $ 10.45 | |||
| 50 | $ 10.04 | |||
| 100 | $ 9.48 | |||
| 300 | $ 8.64 | |||
| 500 | $ 8.08 | |||
| 1000 | $ 7.42 | |||
Description
General part information
R12542 Series
SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
