R141010000

Active

Radiall USA, Inc.

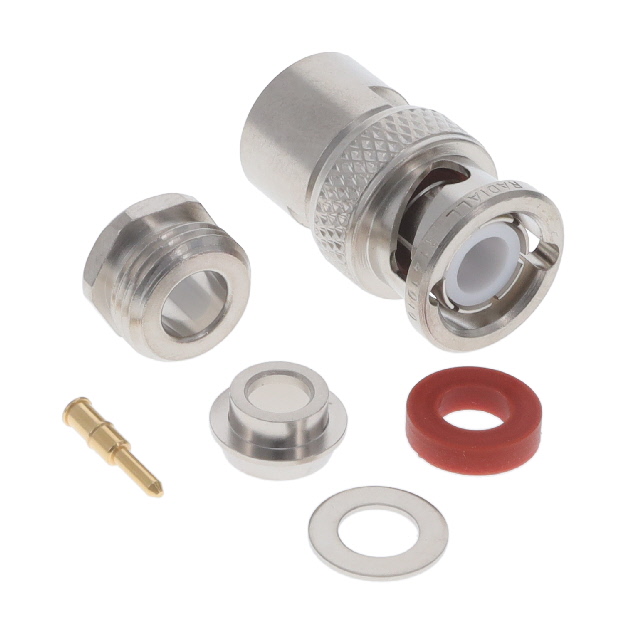

BNC / STRAIGHT PLUG CLAMP TYPE C

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R141010000

Body Finish	Nickel
Body Material	Brass
Cable Group	400, 223, 141, RG-58, 142
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

R14101 Series

Part	Cable Group	Number of Ports	Shield Termination	Fastening Type	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Dielectric Material	Center Contact Material	Body Finish	Body Material	Frequency - Max [Max]	Impedance	Center Contact Plating	Housing Color	Voltage Rating	Connector Style	Contact Termination
Radiall USA, Inc. R141012000W	62 RG-59	1	Clamp	Bayonet Lock	Free Hanging (In-Line)	Male Pin Plug	155 °C	-55 °C	500	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	1.5 GHz	50 Ohms	Gold	Silver	500 V	BNC	Solder
Radiall USA, Inc. R141011000	62 RG-59	1	Clamp	Bayonet Lock	Free Hanging (In-Line)	Male Pin Plug	165 °C	-65 ░C	500	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	4 GHz	50 Ohms	Gold	Silver	500 V	BNC	Solder
Radiall USA, Inc. R141010000	141 142 223 400 RG-58	1	Clamp	Bayonet Lock	Free Hanging (In-Line)	Male Pin Plug	165 °C	-65 ░C	500	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	4 GHz	50 Ohms	Gold	Silver	500 V	BNC	Solder
Radiall USA, Inc. R141018000W	214 225 393 RG-213	1	Clamp	Bayonet Lock	Free Hanging (In-Line)	Male Pin Plug	165 °C	-65 ░C	500	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	4 GHz	50 Ohms	Gold	Silver	500 V	BNC	Solder
Radiall USA, Inc. R141018000	214 225 393 RG-213	1	Clamp	Bayonet Lock	Free Hanging (In-Line)	Male Pin Plug	165 °C	-65 ░C	500	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	4 GHz	50 Ohms	Gold	Silver	500 V	BNC	Solder
Radiall USA, Inc. R141013000	62 RG-59	1	Clamp	Bayonet Lock	Free Hanging (In-Line)	Male Pin Plug	165 °C	-65 ░C	500	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	4 GHz	50 Ohms	Gold	Silver		BNC	Solder
Radiall USA, Inc. R141010000W	141 142 223 400 RG-58	1	Clamp	Bayonet Lock	Free Hanging (In-Line)	Male Pin Plug	165 °C	-65 ░C	500	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	4 GHz	50 Ohms	Gold	Silver	500 V	BNC	Solder
Radiall USA, Inc. R141012000	62 RG-59	1	Clamp	Bayonet Lock	Free Hanging (In-Line)	Male Pin Plug	155 °C	-55 °C	500	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	1.5 GHz	50 Ohms	Gold	Silver	500 V	BNC	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.40
		10	$ 12.76
		25	$ 12.27
		50	$ 11.78
		100	$ 11.13
		300	$ 10.14
		500	$ 9.49
		1000	$ 8.70

Description

General part information

R14101 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
