895-028-521-408
ActiveEDAC Inc.
CONN EDGE SINGLE FML 28POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-028-521-408
ActiveEDAC Inc.
CONN EDGE SINGLE FML 28POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-028-521-408 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
895-028 Series
...
| Part | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Mounting Type | Contact Finish | Flange Feature | Flange Feature | Number of Rows | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Gender | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Material - Insulation | Contact Material | Termination Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 3.25 mm | 0.128 in | 2 | Wire Wrap | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | Copper Alloy | 2 | 14 | |||
EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 1 | Solder | 125 °C | -40 °C | Non Specified - Single Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | Copper Alloy | 1 | 28 | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 2 | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | Copper Alloy | 2 | 14 | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 2 | Solder Eyelet(s) | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | Copper Alloy | 2 | 14 | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | ||
EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 1 | Solder | 125 °C | -40 °C | Non Specified - Single Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | Copper Alloy | 1 | 28 | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 2 | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | Copper Alloy | 2 | 14 | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 1 | Wire Wrap | 125 °C | -40 °C | Non Specified - Single Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | Copper Alloy | 1 | 28 | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 2 | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Polyphenylene Sulfide (PPS) | Copper Alloy | 2 | 14 | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole | Gold | 1 | Wire Wrap | 125 °C | -40 °C | Non Specified - Single Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | Copper Alloy | 1 | 28 | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | ||
EDAC Inc. | 28 | Black | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Through Hole Right Angle | Gold | 1 | Solder | 125 °C | -40 °C | Non Specified - Single Edge | Female | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Polyphenylene Sulfide (PPS) | Copper Alloy | 1 | 28 | M3 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 70.11 | |
Description
General part information
895-028 Series

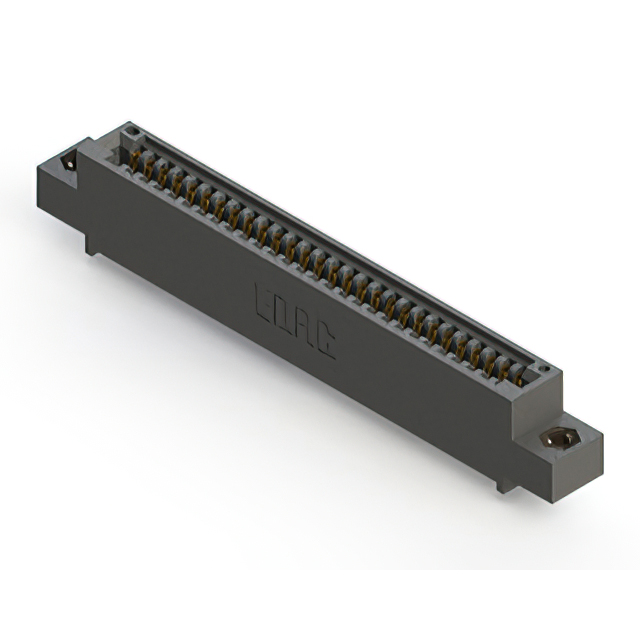

28 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
