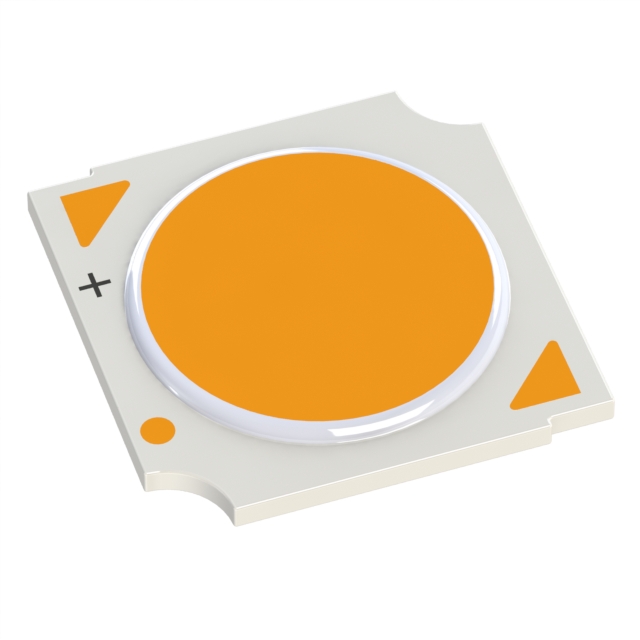

CIM-9-40-90-36-AC30-F4-3
ActiveLuminus Devices Inc.
LED COB CIM9 GEN3 WHT SQU 4000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CIM-9-40-90-36-AC30-F4-3
ActiveLuminus Devices Inc.
LED COB CIM9 GEN3 WHT SQU 4000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CIM-9-40-90-36-AC30-F4-3 | CIM-9-40 Series |
|---|---|---|
| CCT (K) | 4000 K | 4000 K |
| Color | Neutral, White | Neutral, White |
| Configuration | Square | Square |
| CRI (Color Rendering Index) | 90 | 70 - 90 |
| Current - Max [Max] | 340 mA | 340 mA |
| Current - Test | 360 mA | 360 mA |
| Height [z] | 1.37 mm | 1.37 mm |
| Lens Type | Flat | Flat |
| Light Emitting Surface (LES) [diameter] | 9.6 mm | 9.6 mm |
| Lumens/Watt @ Current - Test | 67 lm/W | 67 - 83 lm/W |
| Luminous Flux @ Current/Temperature | 820 lm | 820 - 1015 lm |
| Temperature - Test | 85 °C | 85 °C |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 33.8 V | 33.8 V |
CIM-9-40 Series
LED COB CIM9 GEN3 WHT SQU 4000K
| Part | Color | CRI (Color Rendering Index) | Current - Max [Max] | Lens Type | CCT (K) | Voltage - Forward (Vf) (Typ) | Temperature - Test | Luminous Flux @ Current/Temperature | Height [z] | Light Emitting Surface (LES) [diameter] | Configuration | Type | Lumens/Watt @ Current - Test | Current - Test | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Luminus Devices Inc. CIM-9-40-80-36-AC30-F4-3 | Neutral, White | 80 | 340 mA | Flat | 4000 K | 33.8 V | 85 °C | 945 lm | 1.37 mm | 9.6 mm | Square | Chip On Board (COB) | 77 lm/W | 360 mA | 120 ° |
Luminus Devices Inc. CIM-9-40-70-36-AC30-F4-3 | Neutral, White | 70 | 340 mA | Flat | 4000 K | 33.8 V | 85 °C | 1015 lm | 1.37 mm | 9.6 mm | Square | Chip On Board (COB) | 83 lm/W | 360 mA | 120 ° |
Luminus Devices Inc. CIM-9-40-90-36-AC30-F4-3 | Neutral, White | 90 | 340 mA | Flat | 4000 K | 33.8 V | 85 °C | 820 lm | 1.37 mm | 9.6 mm | Square | Chip On Board (COB) | 67 lm/W | 360 mA | 120 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 1.95 | |
Description
General part information
CIM-9-40 Series
LED Lighting COBs Engines Modules Chip On Board (COB) CIM-9 Gen3 White, Neutral Square
