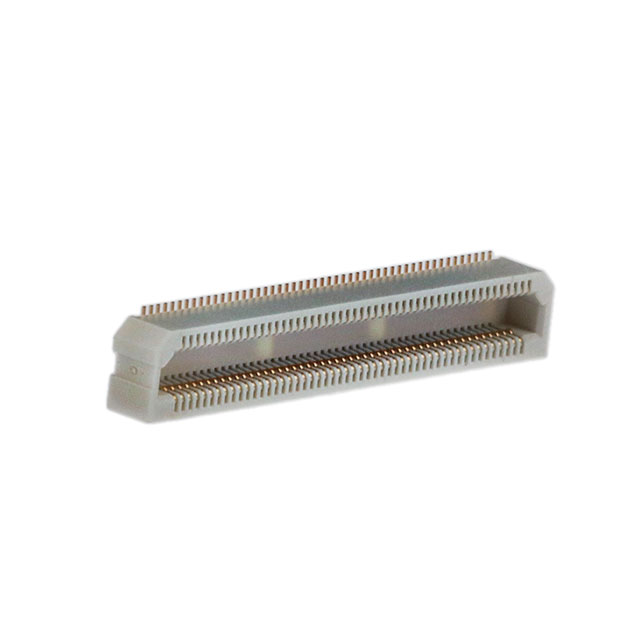

AXK5S00047YA

Active

Panasonic Electric Works

CONN SOCKET 100POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK5S00047YA

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Height Above Board	3.05 mm
Height Above Board	0.12 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Height Above Board	Height Above Board	Connector Type	Number of Positions	Number of Rows	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type
Panasonic Electric Works AXK5S00047YA	3.05 mm	0.12 in	Socket Center Strip Contacts	100	2	4 mm 5 mm 6 mm	0.5 mm	0.02 in	Gold	Surface Mount
Panasonic Electric Works AXK5S00047YG	3.05 mm	0.12 in	Socket Center Strip Contacts	100	2	4 mm 5 mm 6 mm	0.5 mm	0.02 in	Gold	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Socket, Center Strip Contacts Surface Mount Gold

Technical documentation and resources

No documents available
