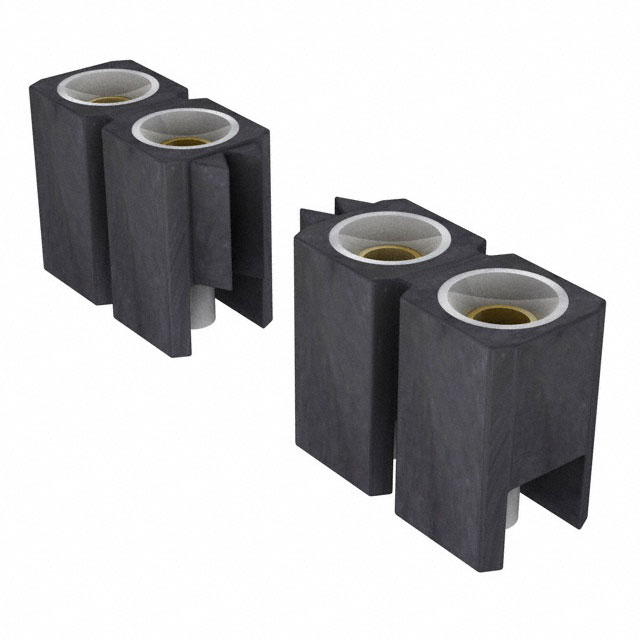

314-83-109-01-899101

Active

PRECI-DIP SA

CONN SOCKET 9POS 0.1 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

314-83-109-01-899101

Active

PRECI-DIP SA

CONN SOCKET 9POS 0.1 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	314-83-109-01-899101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

314-83 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Rows	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Termination	Insulation Height [z]	Insulation Height [z]	Contact Material	Number of Positions	Current Rating (Amps)	Number of Positions Loaded	Insulation Color	Contact Type	Contact Finish - Post	Mounting Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Pitch - Mating	Pitch - Mating
PRECI-DIP SA 314-83-107-01-899191	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	UL94 V-0	Push-Pull	Gold	Solder	0.165 in	4.2 mm	Beryllium Copper	7	3 A	All	Black	Female Socket	Tin	Surface Mount	Circular	-55 °C	125 °C	Socket	0.1 in	2.54 mm
PRECI-DIP SA 314-83-109-01-899101	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	UL94 V-0	Push-Pull	Gold	Solder	0.165 in	4.2 mm	Beryllium Copper	9	3 A	All	Black	Female Socket	Tin	Surface Mount	Circular	-55 °C	125 °C	Socket	0.1 in	2.54 mm
PRECI-DIP SA 314-83-110-01-899101	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	UL94 V-0	Push-Pull	Gold	Solder	0.165 in	4.2 mm	Beryllium Copper	10	3 A	All	Black	Female Socket	Tin	Surface Mount	Circular	-55 °C	125 °C	Socket	0.1 in	2.54 mm
PRECI-DIP SA 314-83-111-01-899101	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	UL94 V-0	Push-Pull	Gold	Solder	0.165 in	4.2 mm	Beryllium Copper	11	3 A	All	Black	Female Socket	Tin	Surface Mount	Circular	-55 °C	125 °C	Socket	0.1 in	2.54 mm
PRECI-DIP SA 314-83-106-01-899101	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1	UL94 V-0	Push-Pull	Gold	Solder	0.165 in	4.2 mm	Beryllium Copper	6	3 A	All	Black	Female Socket	Tin	Surface Mount	Circular	-55 °C	125 °C	Socket	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.08

Description

General part information

314-83 Series

9 Position Socket Connector 0.100" (2.54mm) Surface Mount Gold
