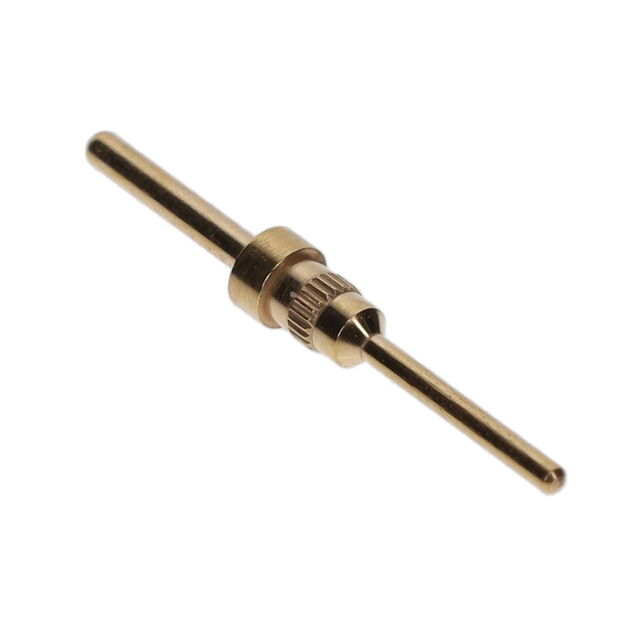

5005-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.030DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
5005-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.030DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5005-0-00-21-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Below Flange [x] | 7.67 mm |
| Length - Below Flange [x] | 0.302 in |
| Length - Overall [x] | 0.53 in |
| Length - Overall [x] | 13.46 mm |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Pin Size - Below Flange | 0.024 in |
| Pin Size - Below Flange | 0.61 mm |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.86 | |
| 10 | $ 0.73 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.53 | |||
| 3000 | $ 0.51 | |||
Description
General part information
5005-0 Series
PC Pin Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia
