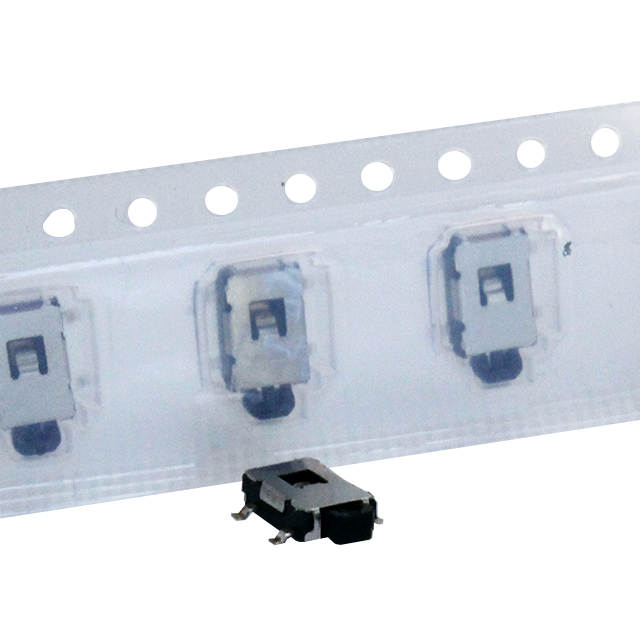

CS1206

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CS1206	- Series

Actuator Length, Right Angle	7.4 mm	7.4 mm
Actuator Material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6, Liquid Crystal Polymer (LCP)
Actuator Orientation	Side Actuated	Side Actuated
Actuator Type	Rectangular Button	Rectangular Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A	0.05 - 50 VDC
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Operating Force	200 gf	180 - 200 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6.1 mm	4.5 - 6.1 mm
Outline [y]	4.5 mm	1.88 - 4.5 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	-	0.25 mm
Termination Style	Gull Wing	Gull Wing, J Lead

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Contact Rating @ Voltage	Switch Function	Actuator Material	Outline [y]	Outline [x]	Operating Force	Actuator Type	Circuit	Actuator Orientation	Termination Style	Mounting Type	Actuator Length, Right Angle	Switch Travel
CIT Relay and Switch CS1206	85 °C	-40 °C	Non-Illuminated	0.05 A, 50 VDC	Off-Mom	Nylon 4/6, Polyamide (PA46)	4.5 mm	6.1 mm	200 gf	Rectangular Button	SPST-NO	Side Actuated	Gull Wing	Surface Mount, Right Angle	7.4 mm
CIT Relay and Switch CS1211	85 °C	-40 °C	Non-Illuminated	0.05 A, 50 VDC	Off-Mom	Liquid Crystal Polymer (LCP)	1.88 mm	4.5 mm	180 gf	Rectangular Button	SPST-NO	Side Actuated	J Lead	Surface Mount, Right Angle		0.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
