1-103975-1
ActiveTE Connectivity AMP Connectors

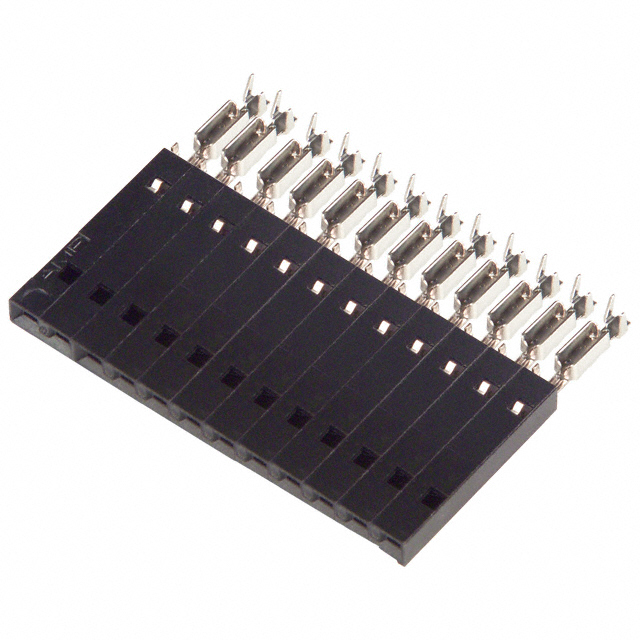

CONN RCPT 12P IDC 22-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-103975-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 12P IDC 22-26AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-103975-1 | 103975 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Contact Type | Female Socket | Female Socket |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 12 | 6 - 12 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable, Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 378 | $ 4.63 | |
103975 Series
CONN RCPT 12P IDC 22-26AWG GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Color | Pitch [x] | Pitch [x] | Features | Number of Positions | Contact Finish | Mounting Type | Cable Termination | Wire Gauge [Min] | Wire Gauge [Max] | Wire Type | Contact Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-103975-1 | 15 µin | 0.38 µm | 1 | Black | 2.54 mm | 0.1 in | Closed End | 12 | Gold | Free Hanging (In-Line) | IDC | 22 AWG | 26 AWG | Ribbon Cable | Female Socket | Receptacle |
TE Connectivity AMP Connectors 1-103975-1 | 15 µin | 0.38 µm | 1 | Black | 2.54 mm | 0.1 in | Closed End | 12 | Gold | Free Hanging (In-Line) | IDC | 22 AWG | 26 AWG | Ribbon Cable | Female Socket | Receptacle |
TE Connectivity AMP Connectors 1-103975-0 | 15 µin | 0.38 µm | 1 | Black | 2.54 mm | 0.1 in | Closed End | 11 | Gold | Free Hanging (In-Line) | IDC | 22 AWG | 26 AWG | Ribbon Cable | Female Socket | Receptacle |
TE Connectivity AMP Connectors 5-103975-6 | 15 µin | 0.38 µm | 1 | Black | 2.54 mm | 0.1 in | Closed End | 7 | Gold | Free Hanging (In-Line) | IDC | 22 AWG | 26 AWG | Ribbon Cable | Female Socket | Receptacle |
TE Connectivity AMP Connectors 5-103975-8 | 15 µin | 0.38 µm | 1 | Black | 2.54 mm | 0.1 in | 9 | Gold | Free Hanging (In-Line) | IDC | 22 AWG | 26 AWG | Discrete | Female Socket | Receptacle | |
TE Connectivity AMP Connectors 5-103975-5 | 15 µin | 0.38 µm | 1 | Black | 2.54 mm | 0.1 in | Closed End | 6 | Gold | Free Hanging (In-Line) | IDC | 22 AWG | 26 AWG | Ribbon Cable | Female Socket | Receptacle |
TE Connectivity AMP Connectors 5-103975-4 | 15 µin | 0.38 µm | 1 | Black | 2.54 mm | 0.1 in | Closed End | Gold | Free Hanging (In-Line) | IDC | 22 AWG | 26 AWG | Ribbon Cable | Female Socket | Receptacle |
Description
General part information
103975 Series
12 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG
