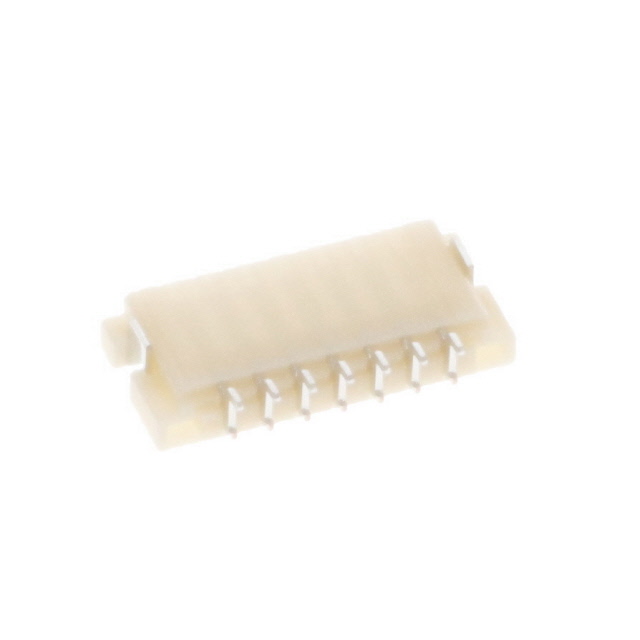

SM07B-SHLS-TF(LF)(SN)
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 7POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
SM07B-SHLS-TF(LF)(SN)
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 7POS 1MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM07B-SHLS-TF(LF)(SN) |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Outer Shroud Contact |
| Fastening Type | Push-Pull |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.069 in |
| Insulation Height | 1.75 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.11 | |
| 10 | $ 0.84 | |||
| 100 | $ 0.65 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 1.11 | ||
| 10 | $ 0.84 | |||
| 100 | $ 0.65 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.50 | |||
| Tape & Reel (TR) | 4500 | $ 0.43 | ||
| 9000 | $ 0.40 | |||
| 13500 | $ 0.39 | |||
| 22500 | $ 0.37 | |||
Description
General part information
SM07B-SH Series
Connector Header Surface Mount, Right Angle 7 position 0.039" (1.00mm)
