1121 CL001

Active

ALPHA WIRE

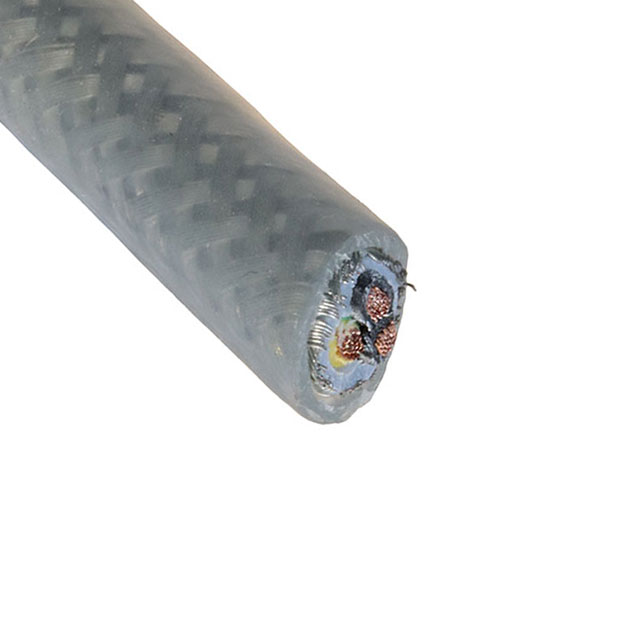

CABLE 3COND 28AWG CLEAR

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 28AWG CLEAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.87

General part information

3 Conductor Multi-Conductor Cable Clear 28 AWG 1000.0' (304.8m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1121 CL001	1121 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	36 AWG	36 AWG
Conductor Strand [custom]	7	7
Jacket (Insulation) Diameter [diameter]	0.12 in	0.12 in
Jacket (Insulation) Diameter [diameter]	3.05 mm	3.05 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Clear	Clear
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	100 - 500 '
Length	-	30.5 - 152.4 m
Number of Conductors	3	3
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	200 V	200 V
Wire Gauge	28 AWG	28 AWG

CABLE 3COND 28AWG CLEAR

Part	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Material	Jacket (Insulation) Material	Wire Gauge	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Length [x]	Length [x]	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Length	Length
ALPHA WIRE 1121 CL002	Clear	0.12 in	3.05 mm	3	Copper, Tinned	Poly-Vinyl Chloride (PVC)	28 AWG	200 V	36 AWG	7	Communication, Control	500 '	152.4 m	Multi-Conductor	-20 C	80 C	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1121 CL001	Clear	0.12 in	3.05 mm	3	Copper, Tinned	Poly-Vinyl Chloride (PVC)	28 AWG	200 V	36 AWG	7	Communication, Control			Multi-Conductor	-20 C	80 C	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 1121 CL005	Clear	0.12 in	3.05 mm	3	Copper, Tinned	Poly-Vinyl Chloride (PVC)	28 AWG	200 V	36 AWG	7	Communication, Control	100 ft	30.5 m	Multi-Conductor	-20 C	80 C	Poly-Vinyl Chloride (PVC)
