M3DRK-3406R
Active3M
IDC CABLE - MKR34K/MC34M/MPR34K
Deep-Dive with AI
Search across all available documentation for this part.
M3DRK-3406R
Active3M
IDC CABLE - MKR34K/MC34M/MPR34K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3DRK-3406R | M3DRK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key, Strain Relief | Polarizing Key, Strain Relief |
| Length | 152.4 mm | 1.52 - 508 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.02 - 914.4 m |
| Length | - | 1.5 - 3.34 ft |
| Length | - | 1.67 - 5 ' |
| Number of Positions | 34 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3DRK Series
IDC CABLE - MKR60K/MC60F/MPR60K
| Part | Contact Finish Thickness | Contact Finish Thickness | Color | Cable Termination | Shielding | Contact Finish | Number of Positions | Connector Type | Pitch - Cable | Pitch - Cable | Features | Length [x] | Length [x] | Pitch - Connector | Pitch - Connector | Number of Rows | Length | Length | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.76 Ám | 30 Áin | Multiple, Twisted Pair (Flat) | IDC | Unshielded | Gold | 60 | Socket to Plug | 0.05 " | 1.27 mm | Polarizing Key, Strain Relief | 1.02 m | 3.34 ft | 0.1 in | 2.54 mm | 2 | ||||||
0.76 Ám | 30 Áin | Multiple, Ribbon | IDC | Unshielded | Gold | 34 | Socket to Plug | 0.05 " | 1.27 mm | Polarizing Key, Strain Relief | 0.1 in | 2.54 mm | 2 | 152.4 mm | 6 " | 0.5 ' | |||||
0.76 Ám | 30 Áin | Multiple, Ribbon | IDC | Unshielded | Gold | 20 | Socket to Plug | 0.05 " | 1.27 mm | Polarizing Key, Strain Relief | 457.2 mm | 1.5 ft | 0.1 in | 2.54 mm | 2 | ||||||
0.76 Ám | 30 Áin | Multiple, Ribbon | IDC | Unshielded | Gold | 10 | Socket to Plug | 0.05 " | 1.27 mm | Polarizing Key, Strain Relief | 457.2 mm | 1.5 ft | 0.1 in | 2.54 mm | 2 | ||||||
0.76 Ám | 30 Áin | IDC | Unshielded | Gold | 50 | Socket to Plug | 0.05 " | 1.27 mm | Polarizing Key, Strain Relief | 0.1 in | 2.54 mm | 2 | 152.4 mm | 6 " | 0.5 ' | ||||||
0.76 Ám | 30 Áin | Multiple, Twisted Pair (Flat) | IDC | Unshielded | Gold | 26 | Socket to Plug | 0.05 " | 1.27 mm | Polarizing Key, Strain Relief | 0.1 in | 2.54 mm | 2 | 1.52 m | 5 ' | ||||||
0.76 Ám | 30 Áin | IDC | Unshielded | Gold | 26 | Socket to Plug | 0.05 " | 1.27 mm | Polarizing Key, Strain Relief | 457.2 mm | 1.5 ft | 0.1 in | 2.54 mm | 2 | |||||||
0.76 Ám | 30 Áin | Multiple, Ribbon | IDC | Unshielded | Gold | 50 | Socket to Plug | 0.05 " | 1.27 mm | Polarizing Key, Strain Relief | 457.2 mm | 1.5 ft | 0.1 in | 2.54 mm | 2 | ||||||
0.76 Ám | 30 Áin | Multiple, Ribbon | IDC | Unshielded | Gold | 40 | Socket to Plug | 0.05 " | 1.27 mm | Polarizing Key, Strain Relief | 914.4 mm | 3 ft | 0.1 in | 2.54 mm | 2 | ||||||
0.76 Ám | 30 Áin | IDC | Unshielded | Gold | 40 | Socket to Plug | 0.05 " | 1.27 mm | Polarizing Key, Strain Relief | 914.4 mm | 3 ft | 0.1 in | 2.54 mm | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.27 | |
| 10 | $ 24.91 | |||
| 25 | $ 22.58 | |||
| 50 | $ 21.00 | |||
| 100 | $ 19.57 | |||
| 250 | $ 17.89 | |||
| 500 | $ 16.76 | |||
Description
General part information
M3DRK Series

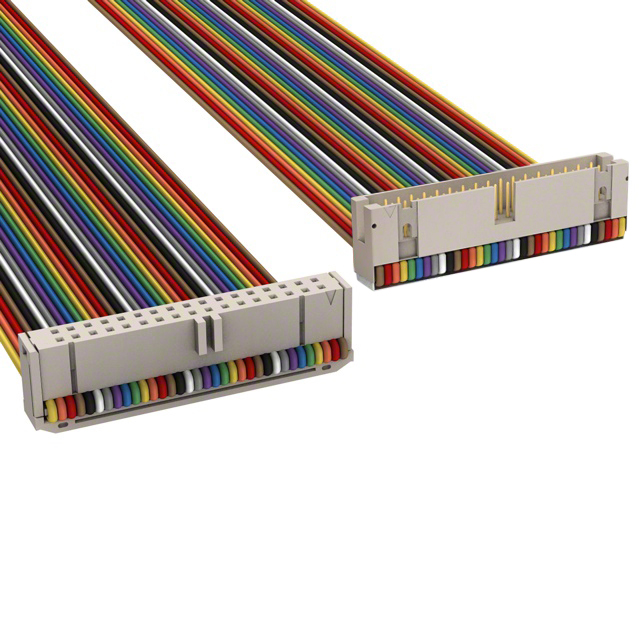

34 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
