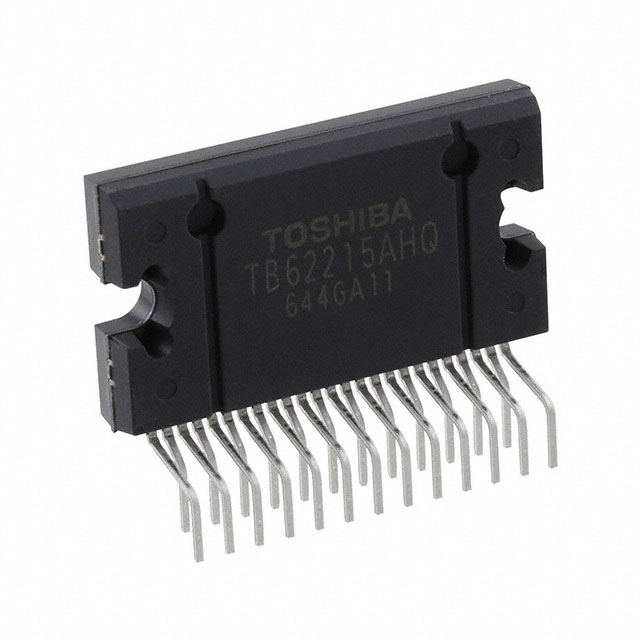

TB62215AHQ,8

Active

Toshiba Semiconductor and Storage

IC MOTOR DRIVER BIPLR 25V 25HZIP

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC MOTOR DRIVER BIPLR 25V 25HZIP

Technical Specifications

Parameters and characteristics for this part

Specification	TB62215AHQ,8

Applications	General Purpose
Current - Output	3 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Bipolar
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (4)
Package / Case	25-SIP Formed Leads
Step Resolution	1/4, 1/2, 1
Supplier Device Package	25-HZIP
Technology	Power MOSFET
Voltage - Load [Max]	38 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Step Resolution	Mounting Type	Current - Output	Package / Case	Output Configuration	Supplier Device Package	Motor Type - Stepper	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Function	Technology	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Package / Case	Motor Type - AC, DC
Toshiba Semiconductor and Storage TB62215AHQ,8	1 1/2 1/4	Through Hole	3 A	25-SIP Formed Leads	Half Bridge (4)	25-HZIP	Bipolar	General Purpose	150 °C	-20 °C	Driver - Fully Integrated Control and Power Stage	Power MOSFET	38 V	10 V	4.75 V	5.25 V	Parallel
Toshiba Semiconductor and Storage TB62215AFNG,C8,EL	1 1/2 1/4	Surface Mount	3 A	48-TFSOP Exposed Pad	Half Bridge (4)	48-HTSSOP	Bipolar	General Purpose	150 °C	-20 °C	Driver - Fully Integrated Control and Power Stage	Power MOSFET	38 V	10 V	4.75 V	5.25 V	Parallel	0.24 in 6.1 mm
Toshiba Semiconductor and Storage TB62215AFG,C8,EL	1 1/2 1/4	Surface Mount	3 A		Half Bridge (4)	28-HSOP	Bipolar	General Purpose	85 C	-20 °C	Driver - Fully Integrated Control and Power Stage	Power MOSFET	38 V	10 V	4.75 V	5.25 V	Parallel		Brushed DC
Toshiba Semiconductor and Storage TB62215AHQ	1 1/2 1/4	Through Hole	3 A	25-SIP Formed Leads	Half Bridge (4)	25-HZIP	Bipolar	General Purpose	150 °C	-20 °C	Driver - Fully Integrated Control and Power Stage	Power MOSFET	38 V	10 V	4.75 V	5.25 V	Parallel
