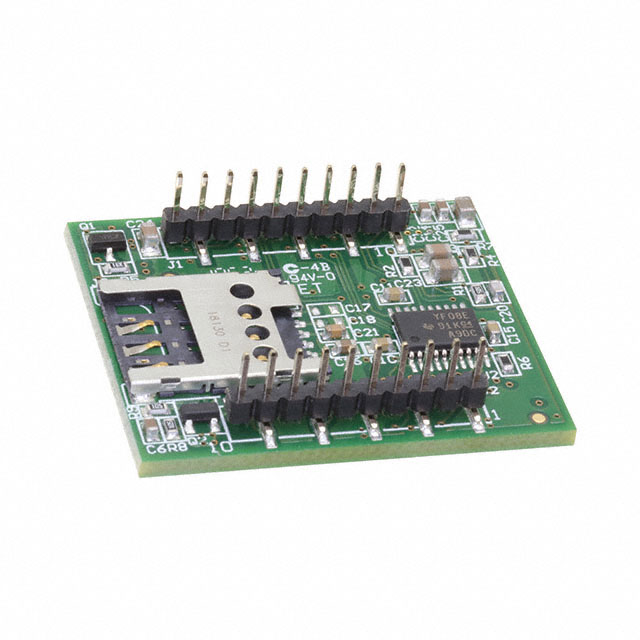

NL-SW-LTE-GELS3-E

Unknown

NimbeLink, LLC

RF TXRX MOD CELL U.FL TH

Search across all available documentation for this part.

Unknown

NimbeLink, LLC

RF TXRX MOD CELL U.FL TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NL-SW-LTE-GELS3-E	NL-SW-LTE Series

Antenna Type	Antenna Not Included, U.FL	Antenna Not Included, U.FL
Current - Receiving	1.5 A	1.5 A
Current - Transmitting	1.5 A	1.5 A
Data Rate	-	150 - 375 Mbps
Frequency	700 MHz, 1.7 GHz	1.7 - 2100 MHz
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-40 - -30 °C
Package / Case	20-DIP Module	20-DIP Module, Module
Power - Output	-	20 dBm
Protocol	4G LTE CAT-1 (Verizon)	4G LTE CAT-4 (Europe) 3G/2G Fallback, 4G LTE CAT-1 (Verizon), 4G LTE CAT NB-IoT, 4G LTE CAT M1/NB-IoT (Global), 2G Fallback, 4G LTE CAT-4 (Verizon), 3G Fallback, GPS, GLONASS, LTE, HSPA+, Beidou, Galileo
RF Family/Standard	Cellular	Cellular, Navigation
Sensitivity	-	-115 dBm
Serial Interfaces	UART, USB	UART, USB
Voltage - Supply [Max]	5.5 V	4.2 - 5.5 V
Voltage - Supply [Min]	3 V	3 - 3.5 V

RF TXRX MOD CELL U.FL TH

Part	Data Rate	RF Family/Standard	Serial Interfaces	Mounting Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Antenna Type	Current - Transmitting	Current - Receiving	Frequency	Sensitivity	Power - Output
NimbeLink, LLC NL-SW-LTE-TC4EU	150 Mbps	Cellular	UART, USB	Through Hole	20-DIP Module	4.3 V	3.5 V	85 °C	-40 °C	4G LTE CAT-4 (Europe) 3G/2G Fallback	Antenna Not Included, U.FL
NimbeLink, LLC NL-SW-LTE-GELS3-E		Cellular	UART, USB	Through Hole	20-DIP Module	5.5 V	3 V	85 °C	-30 ░C	4G LTE CAT-1 (Verizon)	Antenna Not Included, U.FL	1.5 A	1.5 A	1.7 GHz, 700 MHz
NimbeLink, LLC NL-SW-LTE-QBG95	375 kbps	Cellular	USB	Through Hole	Module	4.8 V	3.4 V	85 °C	-40 °C	4G LTE CAT NB-IoT	Antenna Not Included, U.FL			850 MHz, 900 MHz, 1800 MHz, 1900 MHz	-115 dBm	20 dBm
NimbeLink, LLC NL-SW-LTE-QBG96-B		Cellular, Navigation	UART, USB	Through Hole	20-DIP Module	4.3 V	3.4 V	85 °C	-40 °C	2G Fallback, 4G LTE CAT M1/NB-IoT (Global)	Antenna Not Included, U.FL			1.7 GHz, 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz
NimbeLink, LLC NL-SW-LTE-S7588-V-B	150 Mbps	Cellular	UART, USB	Through Hole	20-DIP Module	5.5 V	3 V	85 °C	-40 °C	3G Fallback, 4G LTE CAT-4 (Verizon)	Antenna Not Included, U.FL			1.7 GHz, 700 MHz, 850 MHz, 1900 MHz
NimbeLink, LLC NL-SW-LTE-TC4APG	150 Mbps	Cellular, Navigation	UART, USB	Through Hole	20-DIP Module	4.2 V	3.4 V	85 °C	-40 °C	Beidou, Galileo, GLONASS, GPS, HSPA+, LTE	Antenna Not Included, U.FL
