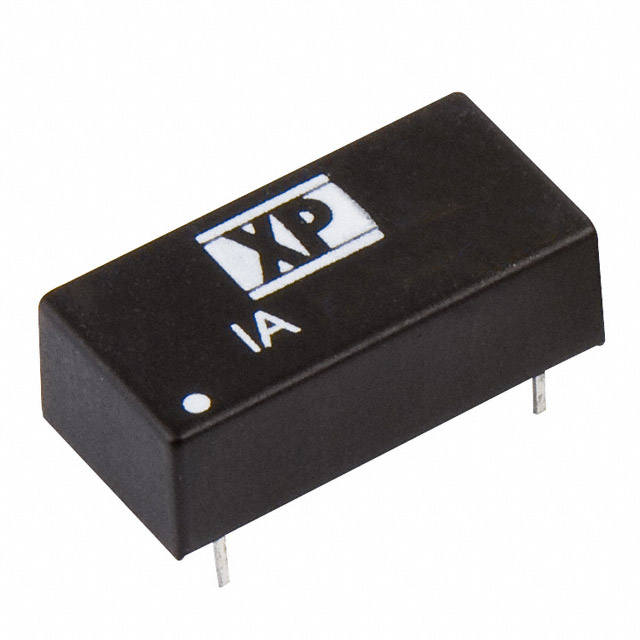

IA2409D
ActiveXP POWER
DC DC CONVERTER +/-9V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IA2409D
ActiveXP POWER
DC DC CONVERTER +/-9V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IA2409D |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 55 mA |
| Efficiency | 76 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [y] | 10.2 mm |
| Size / Dimension [y] | 0.4 in |
| Size / Dimension [z] | 6.4 mm |
| Size / Dimension [z] | 0.25 " |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 9 V |
| Voltage - Output 2 | -9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 20 | $ 5.79 | |
Description
General part information
IA2409 Series
Isolated Module DC DC Converter 2 Output 9V -9V 55mA 21.6V - 26.4V Input
