6383-2
ActiveBANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 15 A, 1.5 KV, NICKEL PLATED CONTACTS, RED
6383-2
ActiveBANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 15 A, 1.5 KV, NICKEL PLATED CONTACTS, RED
Description
General part information
6383 Series

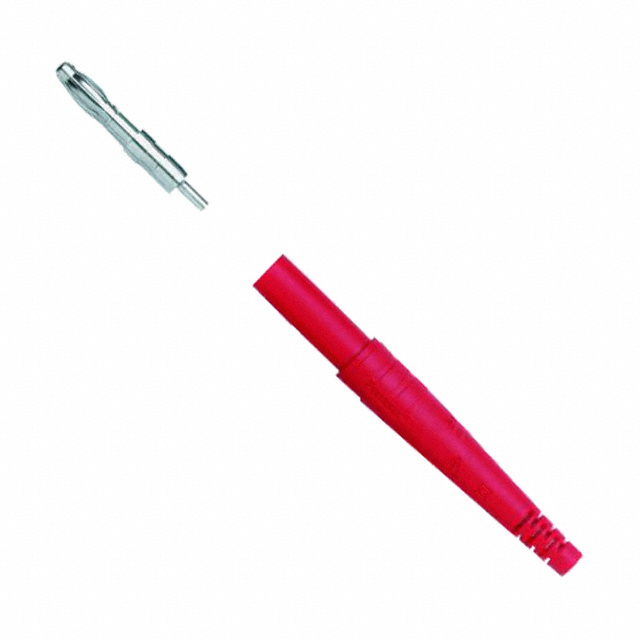

The 6383-2 is a Red Banana Plug which attaches to wire with commonly available crimp tools or by soldering. Can be used on stranded wire from 18 to 22AWG with an insulation diameter from 0.060-inch to 0.150-inch. Provides safe and secure connections to 4mm shrouded banana jacks recessed for shrouded plugs. Nickel plated brass and beryllium copper banana plug with Santropene insulation. Compatible with most digital multimeters from Fluke, Wavetek, Agilent, Amprobe, Greenlee and others.
Technical Specifications
Parameters and characteristics for this part
| Specification | 6383-2 |
|---|---|
| Body Material | Santoprene® (Thermoplastic Elastomer) |
| Color | Red |
| Contact Finish | Nickel |
| Gender | Male |
| Insulation | Sheathed |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -29 °C |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Crimp or Solder |
| Type | Banana Plug |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
