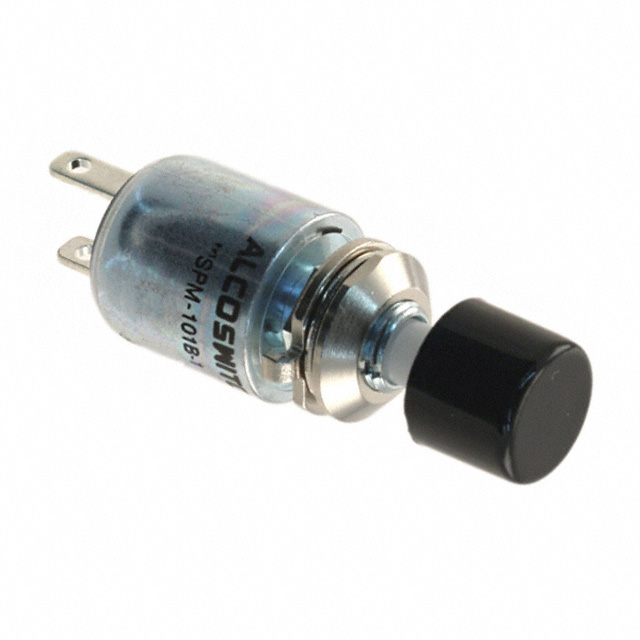

MSPM101B104

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST-NC 100MA

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST-NC 100MA

Technical Specifications

Parameters and characteristics for this part

Specification	MSPM101B104

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-10 °C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	50 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Termination Style	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Type	Circuit	Electrical Life	Mounting Type	Type	Switch Function	Actuator Marking	Features
TE Connectivity Raychem Cable Protection MSPM101B104	80 C	-10 °C	50 VDC	Solder Lug	Black	0.25 in	100 mA	Button Round	SPST-NC	50000 Cycles	Panel Mount Rear	Standard	On-Mom	No Marking
TE Connectivity Raychem Cable Protection MSPM101C104	80 C	-10 °C	50 VDC	Solder Lug	Red	0.25 in	100 mA	Button Round	SPST-NO	50000 Cycles	Panel Mount Rear	Standard	Off-Mom	No Marking
TE Connectivity Raychem Cable Protection MSPM101BS04	80 C	-10 °C	50 VDC	Solder Turret	Black	0.25 in	100 mA	Plunger for Cap	SPST-NC	50000 Cycles	Panel Mount Rear	Standard	On-Mom	No Marking	Audible Click
TE Connectivity Raychem Cable Protection MSPM101CS	80 C	-10 °C	50 VDC	Solder Turret	Red	0.25 in	100 mA	Plunger for Cap	SPST-NO	50000 Cycles	Panel Mount Rear	Standard	Off-Mom	No Marking	Audible Click

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
