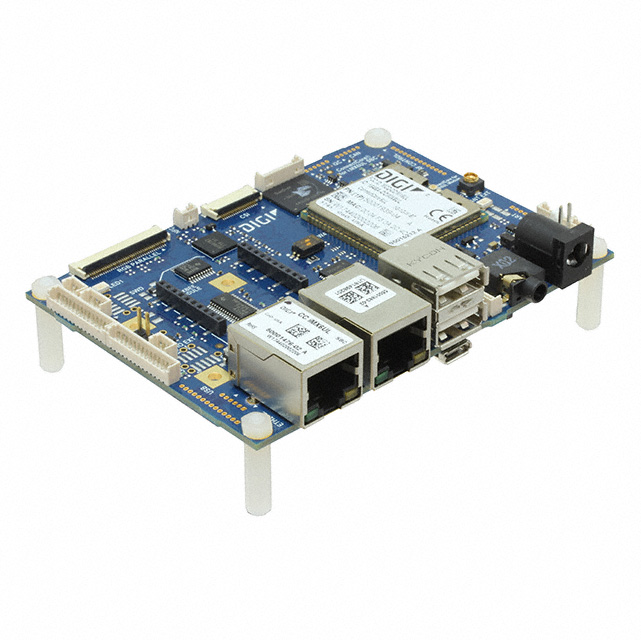

CC-SBP-WMX-JN7A

Active

Digi

SBC 528MHZ 1GB/0GB RAM

Search across all available documentation for this part.

Active

Digi

SBC 528MHZ 1GB/0GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CC-SBP-WMX-JN7A	CC-SBP-WMX Series

Core Processor	i.MX 6UL-2	i.MX 6UL-2, ARM Cortex-A7, i.MX6Ultralite
Digital I/O Lines	-	8
Ethernet	100 Mbps, 10 Mbps	2 - 100 Mbps
Expansion Site/Bus	-	UART, CAN, SPI, I2C, GPIO
Form Factor	Pico-ITX	Pico-ITX
Number of Cores	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
RAM Capacity/Installed	0 GB, 1 GB	0 - 256 GB
RS-232 (422, 485)	-	2
Size / Dimension	-	100.07 mm
Size / Dimension	-	2.83 "
Size / Dimension	-	3.94 in
Size / Dimension	-	71.88 mm
Speed	528 MHz	528 MHz
Storage Interface	NAND - Flash	NAND - Flash
USB	-	USB 2.0 OTG (1), USB 2.0 (3)
Video Outputs	-	RGB, LVDS
Watchdog Timer	False	False

SBC 528MHZ 1GB/0GB RAM

Part	Speed	Core Processor	Watchdog Timer	RAM Capacity/Installed	Form Factor	Storage Interface	Ethernet	Digital I/O Lines	USB	Operating Temperature [Max]	Operating Temperature [Min]	Video Outputs	RS-232 (422, 485)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Cores	Expansion Site/Bus
Digi CC-SBP-WMX-JN7A	528 MHz	i.MX 6UL-2		0 GB, 1 GB	Pico-ITX	NAND - Flash	10 Mbps, 100 Mbps
Digi CC-SBP-WMX-JNUP	528 MHz	ARM Cortex-A7, i.MX6Ultralite		256 MB	Pico-ITX		2, 10 Mbps, 100 Mbps	8	USB 2.0 (3), USB 2.0 OTG (1)	85 °C	-40 °C	LVDS, RGB	2	100.07 mm	2.83 "	3.94 in	71.88 mm	1	CAN, GPIO, I2C, SPI, UART

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Board Computer 528MHz Core 1GB/0GB RAM i.MX 6UL-2
