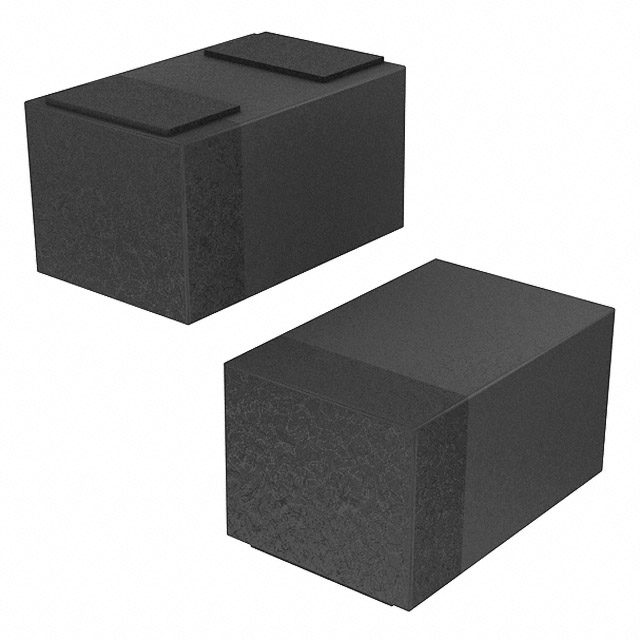

CPDQR12V0U-HF

Active

Comchip Technology

ESD SUPPRESSOR DIODE TVS UNI-DIR 12V 24VC 2-PIN SOD-923F T/R

Search across all available documentation for this part.

Active

Comchip Technology

ESD SUPPRESSOR DIODE TVS UNI-DIR 12V 24VC 2-PIN SOD-923F T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPDQR12V0U-HF	CPDQR12 Series

Applications	General Purpose	General Purpose
Bidirectional Channels	-	1
Capacitance @ Frequency	60 pF	12 - 60 pF
Current - Peak Pulse (10/1000µs)	5 A	1 - 5 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	125 ¯C
Operating Temperature	-	-55 °C
Package / Case	0402 (1006 Metric)	0402 (1006 Metric), 0402 (1005 Metric)
Power - Peak Pulse	120 W	25 - 120 W
Power Line Protection	False	False
Supplier Device Package	0402	0402, 0402 (1005 Metric)
Supplier Device Package	SOD-923F	SOD-923F
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	13.3 V	13 - 13.5 V
Voltage - Clamping (Max) @ Ipp [Max]	24 V	22 - 25 V
Voltage - Reverse Standoff (Typ)	12 V	12 V

TVS DIODE 12VWM 5A 110W 0402

Part	Mounting Type	Voltage - Reverse Standoff (Typ)	Package / Case	Unidirectional Channels [custom]	Supplier Device Package	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Power - Peak Pulse	Type	Bidirectional Channels [custom]
Comchip Technology CPDQR12VEU-HF	Surface Mount	12 V	0402 (1006 Metric)	1	0402	SOD-923F	13.5 V	22 V	5 A	60 pF	125 ¯C	-55 °C	General Purpose	110 W	Zener
Comchip Technology CPDQR12V0U-HF	Surface Mount	12 V	0402 (1006 Metric)	1	0402	SOD-923F	13.3 V	24 V	5 A	60 pF			General Purpose	120 W	Zener
Comchip Technology CPDQR12V	Surface Mount	12 V	0402 (1005 Metric)		0402 (1005 Metric)		13 V	25 V	1 A	12 pF			General Purpose	25 W	Zener	1
Comchip Technology CPDQR12V-HF	Surface Mount	12 V	0402 (1006 Metric)		0402 (1005 Metric)		13 V	25 V	1 A	12 pF			General Purpose	25 W	Zener	1
Comchip Technology CPDQR12V0U	Surface Mount	12 V	0402 (1006 Metric)	1	0402	SOD-923F	13.3 V	24 V	5 A	60 pF			General Purpose	120 W	Zener

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 0402/SOD-923F
