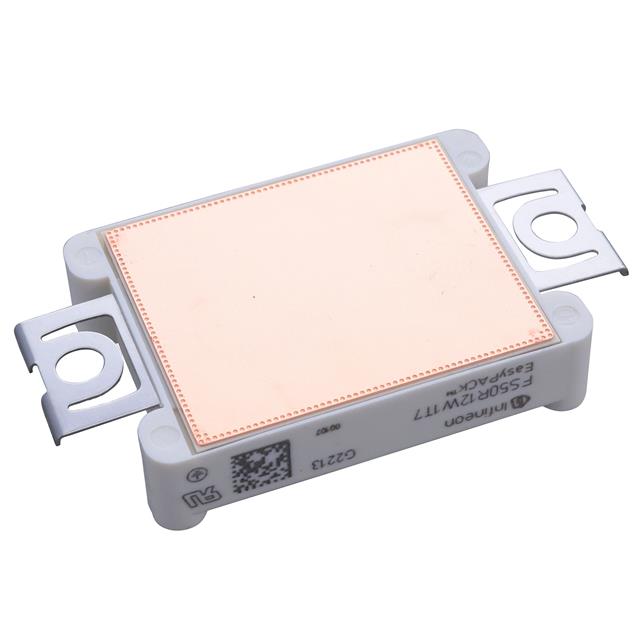

FS50R12W1T7BOMA1

Active

Infineon Technologies

THE FS50R12W1T7 IS A SIXPACK IGBT7 - T7 MODULE IN A EASYPACK™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 50 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FS50R12W1T7 IS A SIXPACK IGBT7 - T7 MODULE IN A EASYPACK™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 50 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FS50R12W1T7BOMA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max)	50 A
Current - Collector Cutoff (Max) [Max]	7.9 µA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	11100 pF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Module
Supplier Device Package	AG-EASY1B
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Current - Collector Cutoff (Max) [Max]	IGBT Type	Current - Collector (Ic) (Max)	Input Capacitance (Cies) @ Vce	Input	Mounting Type	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Operating Temperature
Infineon Technologies FS50R12W2T7B11BOMA1	7.9 µA	Trench Field Stop	50 A	11100 pF	Standard	Chassis Mount	Full Bridge	-40 °C	347 °F	Module	1.5 V	Module	1200 V
Infineon Technologies FS50R12KT4B11BOSA1	1 mA	Trench Field Stop	50 A	2.8 nF	Standard	Chassis Mount	Full Bridge			Module	2.15 V	Module	1200 V	280 W
Infineon Technologies FS50R12W1T7B11BOMA1	7.9 µA		50 A	11100 pF		Chassis Mount		-40 °C	347 °F	Module		Module	1200 V
Infineon Technologies FS50R12KE3BOSA1	5 mA	NPT			Standard	Chassis Mount	Three Phase Inverter			Module	2.15 V	Module	1200 V	270 W	75 A	150 °C
Infineon Technologies FS50R12W2T7BPSA1	7.9 µA	Trench Field Stop	50 A	11100 pF	Standard	Chassis Mount	Three Phase Inverter	-40 C	175 °C	Module		AG-EASY2B	1200 V	20 mW
Infineon Technologies FS50R12W2T4BOMA1	1 mA	Trench Field Stop		2.8 nF	Standard	Chassis Mount	Full Bridge Inverter	-40 °C	125 °C	Module	2.15 V	Module	1200 V	335 W	83 A
Infineon Technologies FS50R12W1T7BOMA1	7.9 µA	Trench Field Stop	50 A	11100 pF	Standard	Chassis Mount	Three Phase Inverter	-40 C	175 °C	Module		AG-EASY1B	1200 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EasyPACK™1B 1200 V, 50 A sixpackIGBT modulewithTRENCHSTOP™ IGBT7, Emitter Controlled 7 diode and NTC. Also available withPressFIT contact technology.
