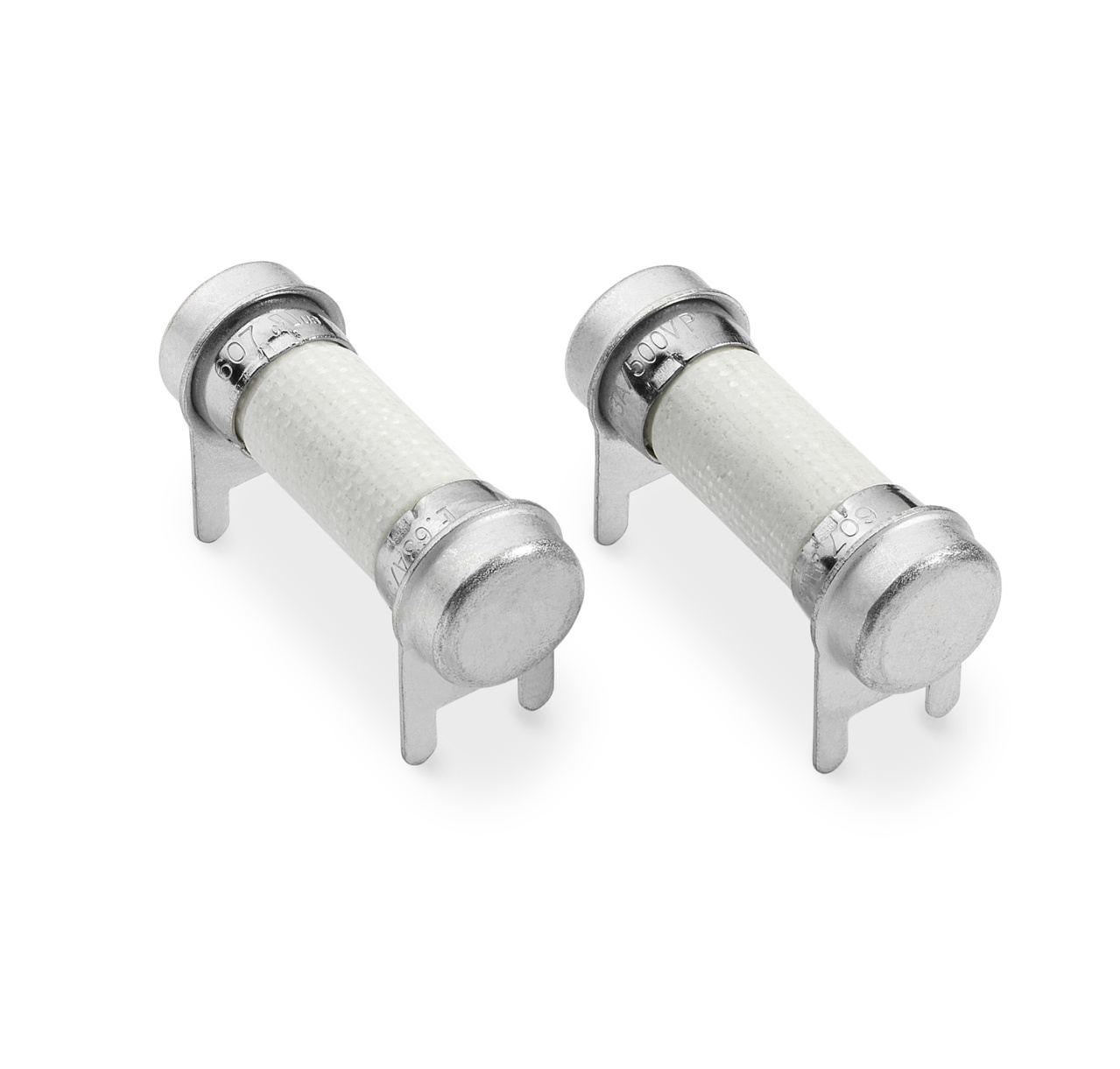

Littelfuse Fuse 607 Image

0607040.UXTH500P

Active
LITTELFUSE

FUSE 500VDC 500VAC 10X32MM PB-FREE 40A/ TRAY

Find alt
Littelfuse Fuse 607 Image

0607040.UXTH500P

Active
LITTELFUSE

FUSE 500VDC 500VAC 10X32MM PB-FREE 40A/ TRAY

Find alt

Description

General part information

0607040 Series

FUSE 500VDC 500VAC 10X32MM PB-FREE 40A/ TRAY

Technical Specifications

Parameters and characteristics for this part

Specification0607040.UXTH500P
Approval AgencycURus, TUV
Breaking Capacity10 kA
Current Rating40 A
Fuse TypeCartridge, Ceramic
Melting I²t2570
Mounting TypeThrough Hole
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Package / CaseRadial Bend Cylinder
Size / Dimension Diameter0.482 in
Size / Dimension Length1.315 in
Voltage Rating - AC500 V
Voltage Rating - DC500 V
