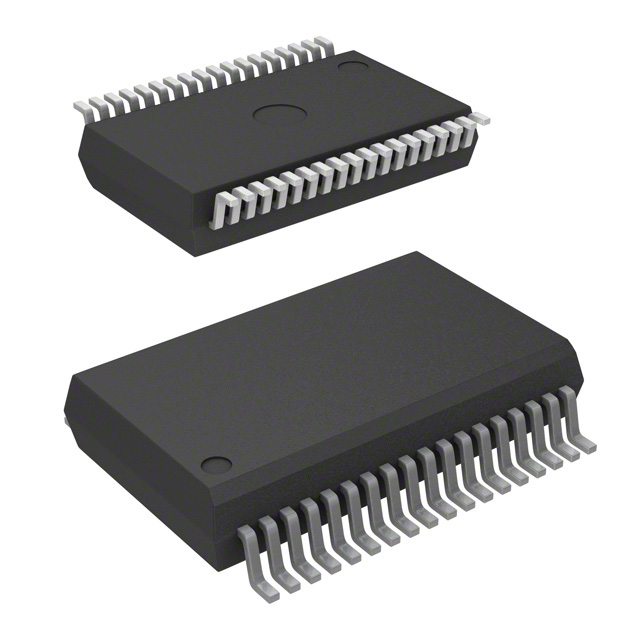

1EDI2002ASXUMA2

Active

Infineon Technologies

EICEDRIVER™ 1200 V HIGH-SIDE DRIVER IC. IT COMES WITH A FUNCTIONAL GALVANICALLY ISOLATED PG-DSO-36 PACKAGE AND WORKS WITH IGBTS. FEATURES: DESATURATION PROTECTION, ENABLE, FAULT REPORTING, OVER-CURRENT PROTECTION (ITRIP), SEPARATE PIN FOR LOGIC GROUND, SHOOT THROUGH PROTECTION, SINGLE INPUT, TWO-LEVEL TURN-OFF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

1EDI2002ASXUMA2

Active

Infineon Technologies

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1EDI2002ASXUMA2

Current - Output High, Low [custom]	1 A
Current - Output High, Low [custom]	1 A
Grade	Automotive
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	36-BSSOP
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Qualification	AEC-Q100
Rise / Fall Time (Typ) [custom]	60 ns
Rise / Fall Time (Typ) [custom]	30 ns
Supplier Device Package	PG-DSO-36-63
Technology	Magnetic Coupling
Voltage - Isolation	3750 Vrms
Voltage - Output Supply [Max]	18 V
Voltage - Output Supply [Min]	13 V

1EDI2002 Series

Part	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Technology	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Qualification	Voltage - Isolation	Number of Channels	Package / Case	Package / Case [x]	Package / Case [y]	Grade
Infineon Technologies 1EDI2002ASXUMA2	1 A	1 A	60 ns	30 ns	Surface Mount	Magnetic Coupling	13 V	18 V	150 °C	-40 °C	PG-DSO-36-63	AEC-Q100	3750 Vrms	1	36-BSSOP	0.295 in	7.5 mm	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.77
		10	$ 9.73
		25	$ 9.28
		100	$ 8.06
		250	$ 7.70
		500	$ 7.02
	Digi-Reel®	1	$ 10.77
		10	$ 9.73
		25	$ 9.28
		100	$ 8.06
		250	$ 7.70
		500	$ 7.02
	Tape & Reel (TR)	1000	$ 6.11
Newark	Each (Supplied on Cut Tape)	1	$ 10.50
		10	$ 8.20
		25	$ 7.62
		50	$ 7.30
		100	$ 6.99
		250	$ 6.69
		500	$ 6.50

Description

General part information

1EDI2002 Series

EiceDRIVER™ SIL - automotive qualified single Channel IGBT Driver with on-chip galvanic insulation (up to 6kV)
