1318790-1

Active

TE Connectivity AMP Connectors

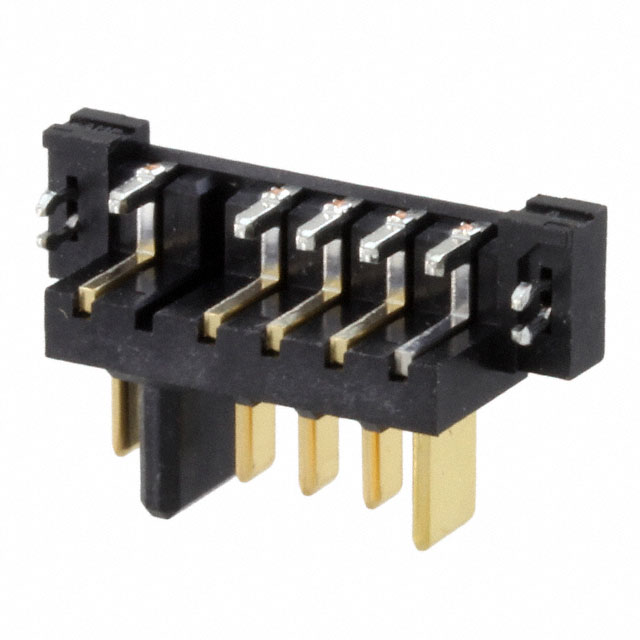

CONN PLUG 5POS 2.50MM EDGE R/A

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG 5POS 2.50MM EDGE R/A

Technical Specifications

Parameters and characteristics for this part

Specification	1318790-1

Color	Black
Connector Type	Plug, Male Blades
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	6 A
Fastening Type	Push-Pull
Features	Board Lock, Keyed
Material - Insulation	Thermoplastic
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Termination	Solder
Voltage Rating	30 VDC

CONN PLUG 5POS 2.50MM EDGE R/A

Part	Contact Finish	Mounting Type	Termination	Current Rating (Amps)	Contact Material	Fastening Type	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Voltage Rating	Color	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Features
TE Connectivity AMP Connectors 1318790-1	Gold	Board Edge, Right Angle, Through Hole	Solder	6 A	Copper Alloy	Push-Pull	Thermoplastic	-20 C	80 C	Plug, Male Blades	30 VDC	Black	0.098 in	2.5 mm	1	Flash	Board Lock, Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Plug, Male Blades Connector Solder 0.098" (2.50mm) Board Edge, Through Hole, Right Angle
