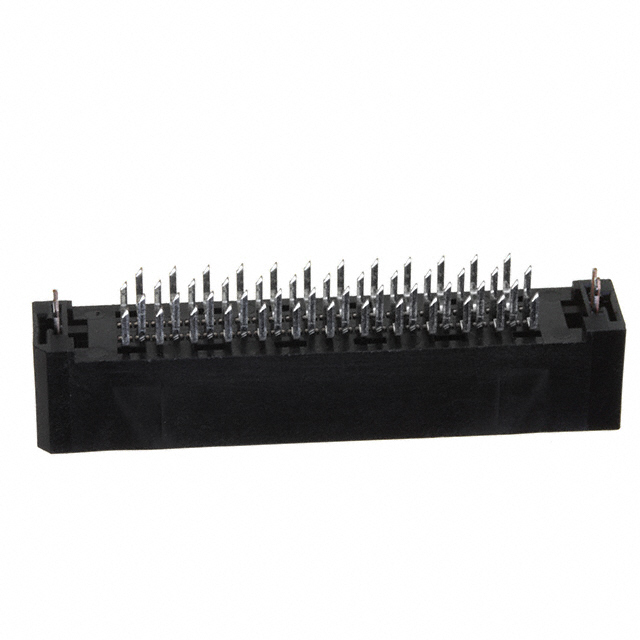

TX25-50P-6ST-H1E
ActiveJAE Electronics
CONN PLUG 50POS VERT GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TX25-50P-6ST-H1E
ActiveJAE Electronics
CONN PLUG 50POS VERT GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TX25-50P-6ST-H1E |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Height Above Board | 9.2 mm |
| Height Above Board | 0.362 in |
| Mated Stacking Heights | 16 mm, 12 mm, 18 mm |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
TX25-50P Series
| Part | Number of Positions | Height Above Board | Height Above Board | Pitch [x] | Pitch [x] | Mounting Type | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 50 | 9 mm | 0.354 in | 0.05 in | 1.27 mm | Through Hole Right Angle | Gold | 2 | 4 Áin | 0.1 Ám | |
JAE Electronics | 50 | 9.2 mm | 0.362 in | 0.05 in | 1.27 mm | Through Hole | Gold | 2 | 4 Áin | 0.1 Ám | 12 mm 16 mm 18 mm |
JAE Electronics | 50 | 11.2 mm | 0.441 in | 0.05 in | 1.27 mm | Through Hole | Gold | 2 | 4 Áin | 0.1 Ám | 14 mm 18 mm 20 mm |
JAE Electronics | 50 | 9.2 mm | 0.362 in | 0.05 in | 1.27 mm | Through Hole | Gold | 2 | 4 Áin | 0.1 Ám | 12 mm 16 mm 18 mm |
JAE Electronics | 50 | 11.2 mm | 0.441 in | 0.05 in | 1.27 mm | Through Hole | Gold | 2 | 4 Áin | 0.1 Ám | 14 mm 18 mm 20 mm |
JAE Electronics | 50 | 9 mm | 0.354 in | 0.05 in | 1.27 mm | Through Hole Right Angle | Gold | 2 | 4 Áin | 0.1 Ám | |
JAE Electronics | 50 | 0.05 in | 1.27 mm | Through Hole | Gold | 2 | 4 Áin | 0.1 Ám | 12 mm 16 mm 18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.59 | |
| 10 | $ 2.25 | |||
| 25 | $ 2.16 | |||
| 40 | $ 2.11 | |||
| 80 | $ 2.02 | |||
| 230 | $ 1.82 | |||
| 660 | $ 1.68 | |||
| 1320 | $ 1.44 | |||
| 2640 | $ 1.34 | |||
Description
General part information
TX25-50P Series
50 Position Connector Plug, Center Strip Contacts Through Hole Gold
