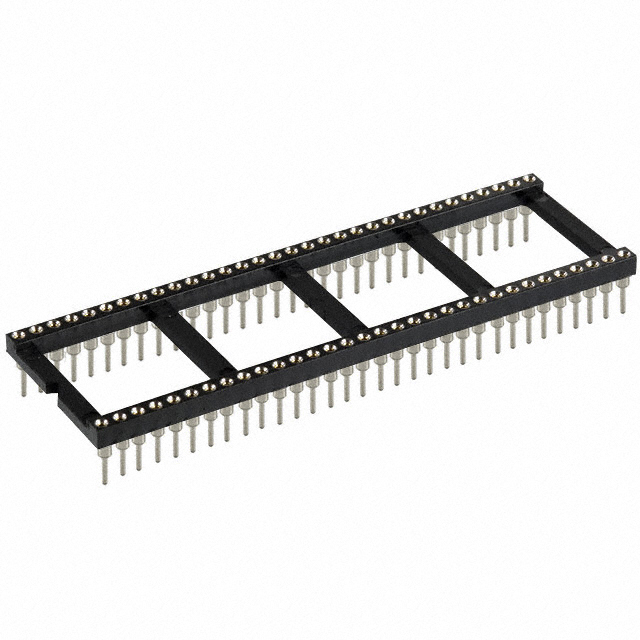

AR64-HZL-TT
ObsoleteAssmann WSW Components
CONN IC DIP SOCKET 64POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AR64-HZL-TT
ObsoleteAssmann WSW Components
CONN IC DIP SOCKET 64POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AR64-HZL-TT |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 4 mOhm |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Housing Material | Thermoplastic, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 64 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | 22.86 mm |
| Type | DIP |
| Type | 0.9 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AR64-HZ Series
64 (2 x 32) Pos DIP, 0.9" (22.86mm) Row Spacing Socket Tin Through Hole
