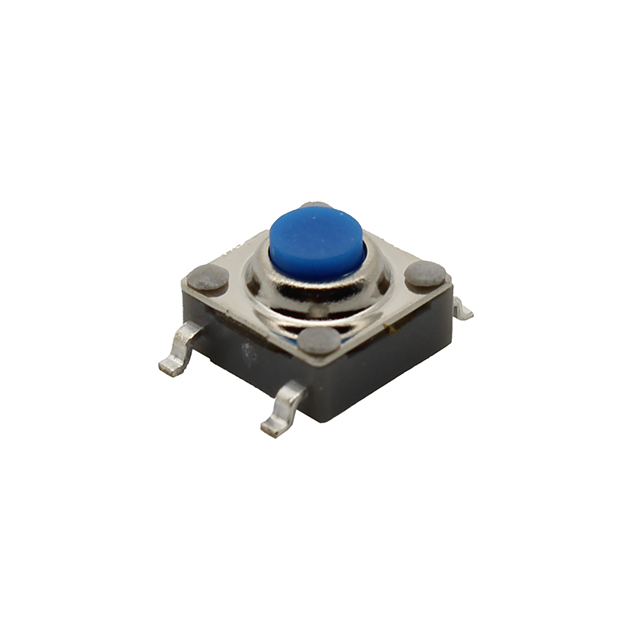

STR4.3LF160QG
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STR4.3LF160QG |
|---|---|
| Actuator Height off PCB, Vertical [z] | 4.3 mm |
| Actuator Material | Polyamide (PA6T), Nylon 6T |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 48 VDC |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6.2 mm |
| Outline [y] | 6.2 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.28 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.46 | |||
| 25 | $ 0.45 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.46 | |||
| 25 | $ 0.45 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| Tape & Reel (TR) | 1000 | $ 0.29 | ||
| 3000 | $ 0.28 | |||
| 5000 | $ 0.26 | |||
| 10000 | $ 0.24 | |||
Description
General part information
STR4.3 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
