8820-3-3

Active

3M (TC)

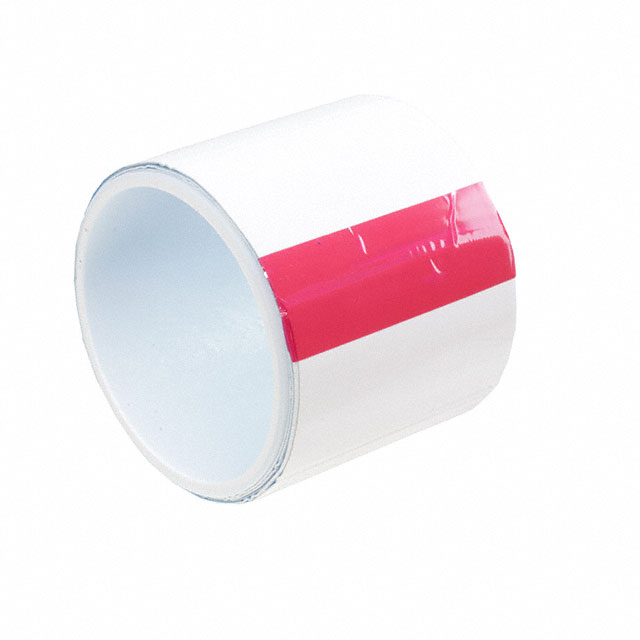

THERM PAD 2.74M X 76.2MM WHT

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 2.74M X 76.2MM WHT

Technical Specifications

Parameters and characteristics for this part

Specification	8820-3-3

Adhesive	Tacky - Both Sides
Color	White
Material	Acrylic
Outline [x]	2.74 m
Outline [y]	76.2 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	72 °F
Storage/Refrigeration Temperature	22 °C
Thermal Conductivity	0.6 W/m-K
Thickness	0.0197 in
Thickness	0.5 mm
Type	Transfer Tape, Roll

Part	Color	Thermal Conductivity	Shape	Material	Thickness	Thickness	Outline [y]	Outline [x]	Shelf Life	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Type	Shelf Life Start	Adhesive
3M (TC) 8820-3-3	White	0.6 W/m-K	Rectangular	Acrylic	0.0197 in	0.5 mm	76.2 mm	2.74 m	24 Months	72 °F	22 °C	Transfer Tape Roll	Date of Manufacture	Tacky - Both Sides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 156.60

General part information

Thermal Pad White 2.74m x 76.20mm Rectangular Tacky - Both Sides
