NYW06025048BSS-W-6

Active

YS TECH USA

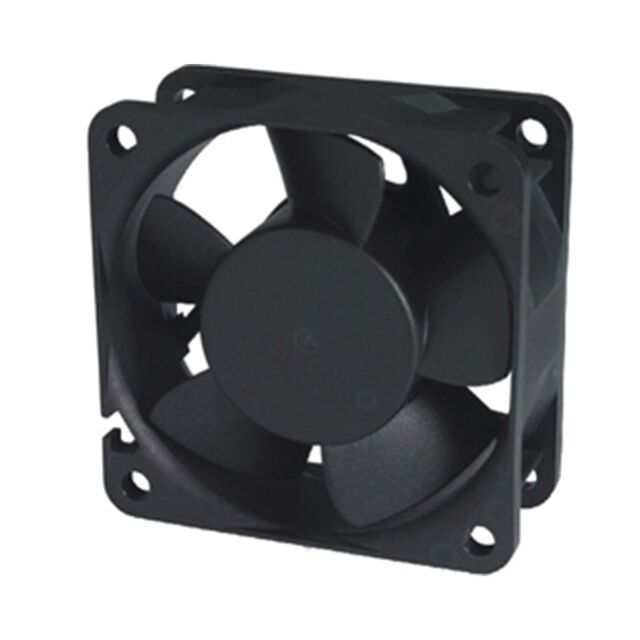

FAN AXIAL 60X25MM 48VDC WIRE

Search across all available documentation for this part.

Active

YS TECH USA

FAN AXIAL 60X25MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	NYW06025048BSS-W-6

Air Flow	0.916 m³/min
Air Flow	32.7 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	65000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	42 dB
Power (Watts)	3.84 W
RPM	6800 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	124.5 Pa
Static Pressure	0.5 in H2O
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	24 VDC
Width [y]	25 mm

FAN AXIAL 60X25MM 48VDC WIRE

Part	Voltage - Rated [custom]	Lifetime @ Temp.	Static Pressure	Static Pressure	Power (Watts)	Termination	Air Flow	Air Flow	Fan Type	Width [y]	Voltage Range [Min]	Voltage Range [Max]	RPM	Size / Dimension [x]	Size / Dimension [y]	Bearing Type	Noise	Material - Blade
YS TECH USA NYW06025048BSS-W-6	48 VDC	65000 Hrs	124.5 Pa	0.5 in H2O	3.84 W	2 Wire Leads	0.916 m³/min	32.7 CFM	Tubeaxial	25 mm	24 VDC	56 VDC	6800 RPM	60 mm	60 mm	Ball	42 dB	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 32.7 CFM (0.916m³/min) 2 Wire Leads
