AN1101SSMTXL
ObsoletePanasonic Industrial Automation Sales
IC OPAMP GP 1 CIRCUIT SSMINI-5DA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN1101SSMTXL
ObsoletePanasonic Industrial Automation Sales
IC OPAMP GP 1 CIRCUIT SSMINI-5DA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN1101SSMTXL |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 1 pA |
| Current - Supply | 55 µA |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |

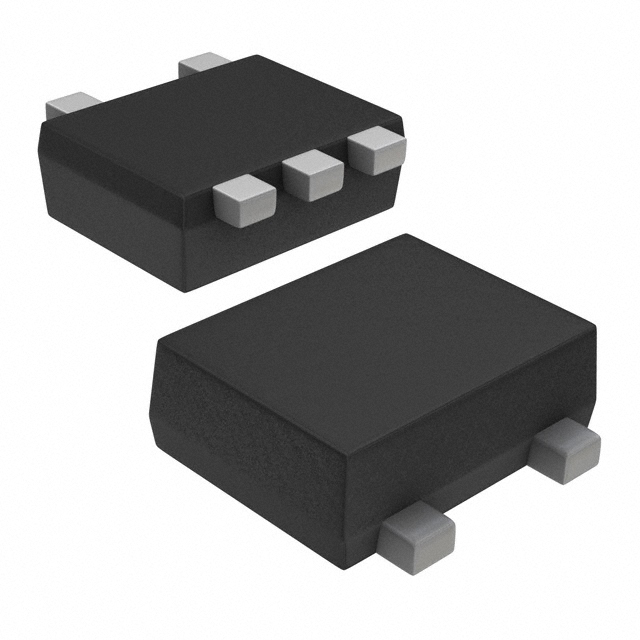

| Package / Case | SOT-665 |
| Supplier Device Package | SSMini-5DA |
| Voltage - Input Offset | 500 çV |
| Voltage - Supply Span (Max) [Max] | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AN1101 Series
General Purpose Amplifier 1 Circuit SSMini-5DA
Documents
Technical documentation and resources
