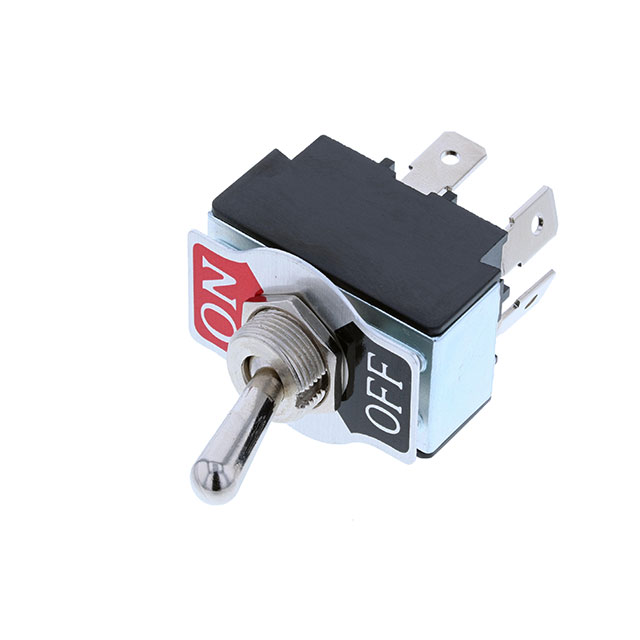

TB2-2B-DC-1

Active

Switch Components

SWITCH TOGGLE DPST-NO 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE DPST-NO 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TB2-2B-DC-1

Actuator Length [x]	17.7 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	DPST-NO
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

SWITCH TOGGLE DPST-NO 20A 12V

Part	Termination Style	Current Rating (Amps)	Actuator Type	Actuator Length [x]	Illumination	Panel Cutout Dimensions [diameter]	Circuit	Bushing Thread	Bushing Thread	Voltage Rating - DC	Electrical Life	Switch Function
Switch Components TB2-2B-DC-1	Quick Connect - 0.250" (6.3mm)	20 A	Standard Round	17.7 mm	Non-Illuminated	12.2 mm	DPST-NO	M12	0.75	12 V	6000 Cycles	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPST-NO Panel Mount
