T4145535051-001
ActiveTE Connectivity AMP Connectors

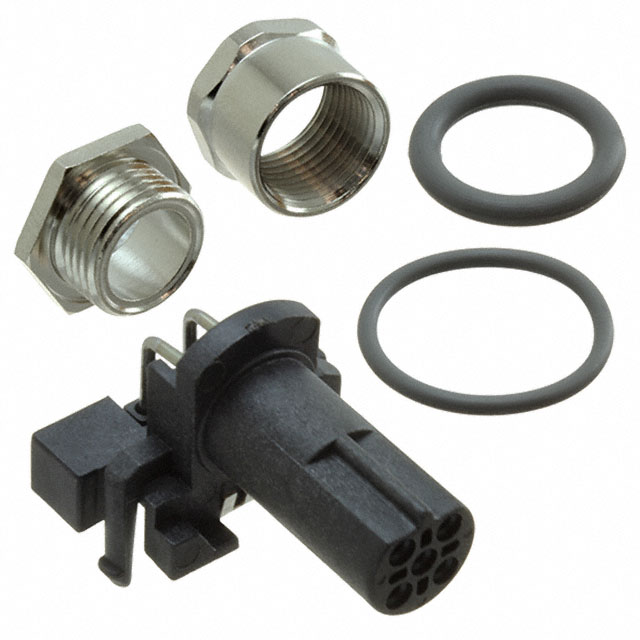

CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4145535051-001
ActiveTE Connectivity AMP Connectors
CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4145535051-001 | T41455 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Features | Board Guide, Board Lock | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | - | 2 - 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | D | D |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-5 | M12-2, M12-4, M12-3, M12-5 |
| Shielding | Shielded | Shielded, Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 60 VDC | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.92 | |
| 10 | $ 13.63 | |||
| 30 | $ 13.27 | |||
| 80 | $ 12.62 | |||
| 230 | $ 11.39 | |||
| 440 | $ 11.31 | |||
| 950 | $ 9.86 | |||
T41455 Series
CONN PLUG FMALE 2POS GOLD SOLDER
| Part | Orientation | Contact Material | Features | Number of Positions | Applications | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Mounting Feature | Contact Finish Thickness - Mating | Shell Material | Color | Current Rating (Amps) | Insert Material | Contact Finish - Mating | Voltage Rating | Shielding | Mounting Type | Connector Type | Primary Material | Shell Size - Insert | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4145535021-001 | D | Copper Alloy | Board Guide, Board Lock | 2 | Industrial | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Nickel | Bulkhead - Rear Side Nut | Flash | Copper Alloy | Silver | 4 A | Polyamide (PA66), Nylon 6/6 | Gold | 250 VDC | Shielded | Panel Mount, Right Angle, Through Hole | Female Sockets, Plug | Metal | M12-2 | Solder |
TE Connectivity AMP Connectors T4145535041-001 | D | Copper Alloy | Board Guide, Board Lock | 4 | Industrial | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Nickel | Bulkhead - Rear Side Nut | Flash | Copper Alloy | Silver | 4 A | Polyamide (PA66), Nylon 6/6 | Gold | 250 VDC | Shielded | Panel Mount, Right Angle, Through Hole | Female Sockets, Plug | Metal | M12-4 | Solder |
TE Connectivity AMP Connectors T4145515031-001 | D | Copper Alloy | Board Guide, Board Lock | Industrial | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Nickel | Bulkhead - Rear Side Nut | Flash | Copper Alloy | Silver | 4 A | Polyamide (PA66), Nylon 6/6 | Gold | 250 VDC | Unshielded | Panel Mount, Right Angle, Through Hole | Female Sockets, Plug | Metal | M12-3 | Solder | |
TE Connectivity AMP Connectors T4145535051-001 | D | Copper Alloy | Board Guide, Board Lock | Industrial | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Nickel | Bulkhead - Rear Side Nut | Flash | Copper Alloy | Silver | 4 A | Polyamide (PA66), Nylon 6/6 | Gold | 60 VDC | Shielded | Panel Mount, Right Angle, Through Hole | Female Sockets, Plug | Metal | M12-5 | Solder | |
TE Connectivity AMP Connectors T4145515051-001 | D | Copper Alloy | Board Guide, Board Lock | Industrial | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Nickel | Bulkhead - Rear Side Nut | Flash | Copper Alloy | Silver | 4 A | Polyamide (PA66), Nylon 6/6 | Gold | 60 VDC | Unshielded | Panel Mount, Right Angle, Through Hole | Female Sockets, Plug | Metal | M12-5 | Solder | |
TE Connectivity AMP Connectors T4145515041-001 | D | Copper Alloy | Board Guide, Board Lock | 4 | Industrial | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Nickel | Bulkhead - Rear Side Nut | Flash | Copper Alloy | Silver | 4 A | Polyamide (PA66), Nylon 6/6 | Gold | 250 VDC | Unshielded | Panel Mount, Right Angle, Through Hole | Female Sockets, Plug | Metal | M12-4 | Solder |
TE Connectivity AMP Connectors T4145515021-001 | D | Copper Alloy | Board Guide, Board Lock | 2 | Industrial | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Nickel | Bulkhead - Rear Side Nut | Flash | Copper Alloy | Silver | 4 A | Polyamide (PA66), Nylon 6/6 | Gold | 250 VDC | Unshielded | Panel Mount, Right Angle, Through Hole | Female Sockets, Plug | Metal | M12-2 | Solder |
Description
General part information
T41455 Series
5 Position Circular Connector Plug, Female Sockets Solder
