0034.6020

Active

SCHURTER Inc.

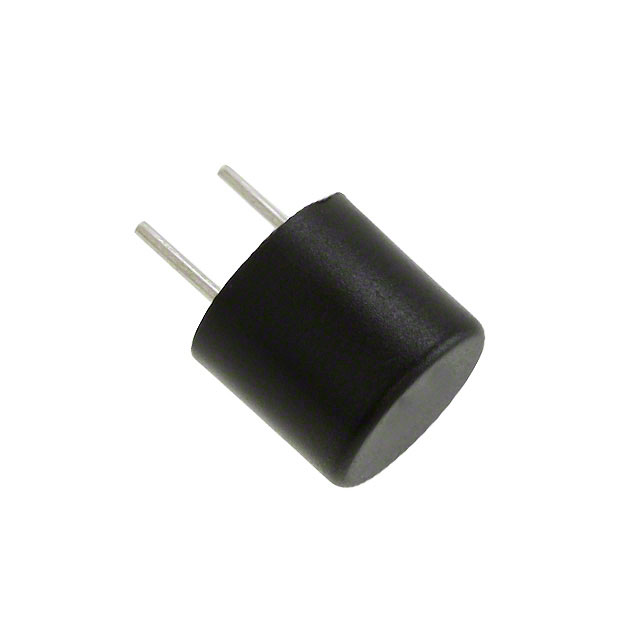

FUSE, PCB LEADED, 4 A, 250 VAC, MSF 250 SERIES, FAST ACTING, RADIAL LEADED

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE, PCB LEADED, 4 A, 250 VAC, MSF 250 SERIES, FAST ACTING, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	0034.6020

Breaking Capacity @ Rated Voltage	40 A
Current Rating (Amps)	4 A
Fuse Type	Board Mount
Melting I²t	7.9
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Vertical, Radial, Can
Response Time	Fast Blow
Size / Dimension [diameter]	0.335 "
Size / Dimension [diameter]	8.5 mm
Size / Dimension [z]	0.335 "
Size / Dimension [z]	8.5 mm
Voltage Rating - AC	250 V

"MSF 250, 4 A, 250 VAC, QUICK-ACTING F, FUSE, SUBMINIATURE FUSE\/

Part	Package / Case	Current Rating (Amps)	Response Time	Fuse Type	Operating Temperature [Max]	Operating Temperature [Min]	Breaking Capacity @ Rated Voltage	Mounting Type	Melting I²t	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - AC
SCHURTER Inc. 0034.6020	Can, Radial, Vertical	4 A	Fast Blow	Board Mount	85 °C	-40 °C	40 A	Through Hole	7.9	0.335 "	8.5 mm	0.335 "	8.5 mm	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

"MSF 250, 4 A, 250 VAC, QUICK-ACTING F, FUSE, SUBMINIATURE FUSE\/
