SSB-LX2950IYW

Active

Lumex Opto/Components Inc.

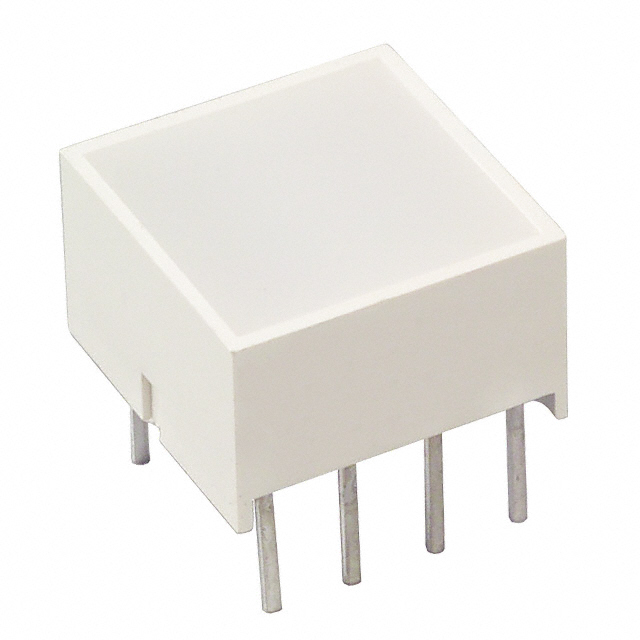

LED LT BAR SQ RED/YEL DIFF BICLR

Deep-Dive with AI

Search across all available documentation for this part.

SSB-LX2950IYW

Active

Lumex Opto/Components Inc.

LED LT BAR SQ RED/YEL DIFF BICLR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSB-LX2950IYW

Color	Yellow, Red
Configuration	DIP, Bar - Single
Current [custom]	30 mA
Current [custom]	30 mA
Lens Style	Square with Flat Top
Lens Type	Diffused, White
Millicandela Rating	25 mcd
Mounting Type	Through Hole
Viewing Angle	160 °
Voltage Rating	2.1 V
Wavelength - Peak	635 nm, 585 nm

SSB-LX2950 Series

LED LT BAR SQ RED/YEL DIFF BICLR

Part	Lens Type	Viewing Angle	Configuration	Lens Style	Wavelength - Peak	Current [custom]	Current [custom]	Millicandela Rating	Voltage Rating	Color	Mounting Type
Lumex Opto/Components Inc. SSB-LX2950IYW	Diffused, White	160 °	Bar - Single, DIP	Square with Flat Top	585 nm, 635 nm	30 mA	30 mA	25 mcd	2.1 V	Red, Yellow	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.21

Description

General part information

SSB-LX2950 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Red, Yellow Diffused, White 2.1V 30mA Red, 30mA Yellow Square with Flat Top Through Hole

Documents

Technical documentation and resources

No documents available
