LBW6S-2T5

Active

IDEC Corporation

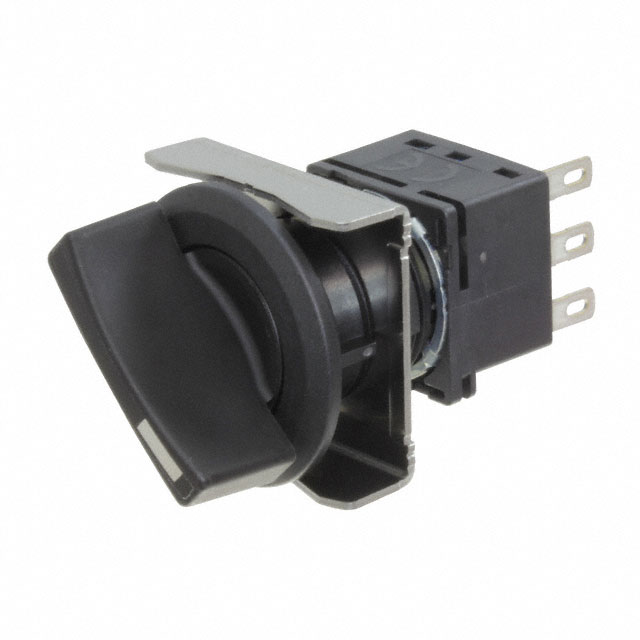

ROTARY SWITCH, 2 POSITION, 1 POLE, 90 °, 5 A, 250 V, LBW SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LBW6S-2T5

Active

IDEC Corporation

ROTARY SWITCH, 2 POSITION, 1 POLE, 90 °, 5 A, 250 V, LBW SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.24
		10	$ 26.95
		25	$ 25.40
		50	$ 24.29
		100	$ 23.23
		250	$ 21.89
Newark	Each	1	$ 36.20
		5	$ 33.44
		10	$ 31.00
		25	$ 28.57
		50	$ 26.78
		100	$ 25.32
		250	$ 23.05

Description

General part information

LBW6S Series

Selector Switch 2 Position SPDT 5A (AC/DC) 125 V Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	LBW6S-2T5	LBW6S Series

(Select First, Then Apply Filters) Compatible Series	-	IDEC, LBW
Actuator Type	-	Selector
Approval Agency	CSA, CE, UL, TUV	CSA, CE, UL, TUV
Circuit	SPDT	DPDT, 3PDT, SPDT
Current Rating (Amps)	5 A	5 - 100 mA
Electrical Life	50000 Cycles	50000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	250000 Cycles	250000 Cycles
Number of Positions	2	2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions	-	22.3 mm
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Requires	-	Contact Block(s)
Switch Function	On-On	On-Off-On, Mom-Off-Mom, On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, PC Pin
Termination Style	2.8 mm	2.8 mm
Type	Standard	Standard, Momentary, Maintained
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

Part

Switch Function

Termination Style

Type

Illumination

Current Rating (Amps)

Electrical Life

Voltage Rating - DC

Circuit

Mechanical Life

Approval Agency

Operating Temperature [Min]

Operating Temperature [Max]

Panel Cutout Dimensions [diameter]

Ingress Protection

Voltage Rating - AC

Number of Positions

(Select First, Then Apply Filters) Compatible Series

Actuator Type

Requires

Panel Cutout Dimensions

IDEC Corporation

LBW6S-3T2

On-Off-On

0.11 in

Quick Connect, Solder

2.8 mm

Standard

Non-Illuminated

100 mA

50000 Cycles

30 V

DPDT

250000 Cycles

CE, CSA, TUV, UL

-25 °C

60 °C

22.3 mm

IP65 - Dust Tight, Water Resistant

125 V

IDEC Corporation

LBW6S-33T2V

Mom-Off-Mom

PC Pin

Standard

Non-Illuminated

100 mA

50000 Cycles

30 V

DPDT

250000 Cycles

CE, CSA, TUV, UL

-25 °C

60 °C

22.3 mm

IP65 - Dust Tight, Water Resistant

125 V

IDEC Corporation

LBW6S-3T7

On-Off-On

0.11 in

Quick Connect, Solder

2.8 mm

Standard

Non-Illuminated

5 A

50000 Cycles

30 V

3PDT

250000 Cycles

CE, CSA, TUV, UL

-25 °C

60 °C

22.3 mm

IP65 - Dust Tight, Water Resistant

125 V

IDEC Corporation

LBW6S-2T2V

On-On

PC Pin

Standard

Non-Illuminated

100 mA

50000 Cycles

30 V

DPDT

250000 Cycles

CE, CSA, TUV, UL

-25 °C

60 °C

22.3 mm

IP65 - Dust Tight, Water Resistant

125 V

IDEC Corporation

LBW6S-2T3

On-On

0.11 in

Quick Connect, Solder

2.8 mm

Standard

Non-Illuminated

100 mA

50000 Cycles

30 V

3PDT

250000 Cycles

CE, CSA, TUV, UL

-25 °C

60 °C

22.3 mm

IP65 - Dust Tight, Water Resistant

125 V

IDEC Corporation

LBW6S-33Y

Momentary

Non-Illuminated

IDEC, LBW

Selector

Contact Block(s)

22.3 mm

IDEC Corporation

LBW6S-2Y

Maintained

Non-Illuminated

IDEC, LBW

Selector

Contact Block(s)

22.3 mm

IDEC Corporation

LBW6S-33T2

Mom-Off-Mom

0.11 in

Quick Connect, Solder

2.8 mm

Standard

Non-Illuminated

100 mA

50000 Cycles

30 V

DPDT

250000 Cycles

CE, CSA, TUV, UL

-25 °C

60 °C

22.3 mm

IP65 - Dust Tight, Water Resistant

125 V

IDEC Corporation

LBW6S-2T5

On-On

0.11 in

Quick Connect, Solder

2.8 mm

Standard

Non-Illuminated

5 A

50000 Cycles

30 V

SPDT

250000 Cycles

CE, CSA, TUV, UL

-25 °C

60 °C

22.3 mm

IP65 - Dust Tight, Water Resistant

125 V

IDEC Corporation

LBW6S-2T3V

On-On

PC Pin

Standard

Non-Illuminated

100 mA

50000 Cycles

30 V

3PDT

250000 Cycles

CE, CSA, TUV, UL

-25 °C

60 °C

22.3 mm

IP65 - Dust Tight, Water Resistant

125 V

Part	Switch Function	Termination Style	Termination Style	Termination Style	Type	Illumination	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Circuit	Mechanical Life	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - AC	Number of Positions	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Requires	Panel Cutout Dimensions
IDEC Corporation LBW6S-3T2	On-Off-On	0.11 in	Quick Connect, Solder	2.8 mm	Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	DPDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V
IDEC Corporation LBW6S-33T2V	Mom-Off-Mom		PC Pin		Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	DPDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V
IDEC Corporation LBW6S-3T7	On-Off-On	0.11 in	Quick Connect, Solder	2.8 mm	Standard	Non-Illuminated	5 A	50000 Cycles	30 V	3PDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V
IDEC Corporation LBW6S-2T2V	On-On		PC Pin		Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	DPDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V	2
IDEC Corporation LBW6S-2T3	On-On	0.11 in	Quick Connect, Solder	2.8 mm	Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	3PDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V	2
IDEC Corporation LBW6S-33Y					Momentary	Non-Illuminated													IDEC, LBW	Selector	Contact Block(s)	22.3 mm
IDEC Corporation LBW6S-2Y					Maintained	Non-Illuminated													IDEC, LBW	Selector	Contact Block(s)	22.3 mm
IDEC Corporation LBW6S-33T2	Mom-Off-Mom	0.11 in	Quick Connect, Solder	2.8 mm	Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	DPDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V
IDEC Corporation LBW6S-2T5	On-On	0.11 in	Quick Connect, Solder	2.8 mm	Standard	Non-Illuminated	5 A	50000 Cycles	30 V	SPDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V	2
IDEC Corporation LBW6S-2T3V	On-On		PC Pin		Standard	Non-Illuminated	100 mA	50000 Cycles	30 V	3PDT	250000 Cycles	CE, CSA, TUV, UL	-25 °C	60 °C	22.3 mm	IP65 - Dust Tight, Water Resistant	125 V	2
