6-102523-2
ActiveTE Connectivity AMP Connectors

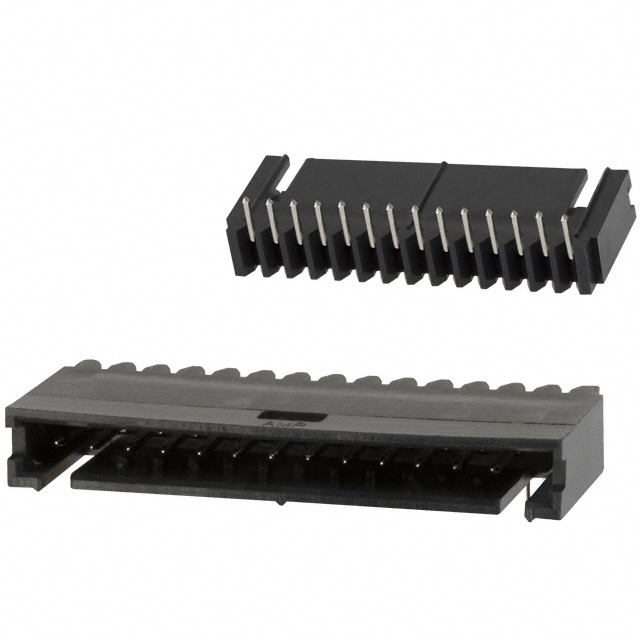

CONN HEADER R/A 14POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
6-102523-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 14POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-102523-2 | 102523 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Tin-Lead |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 6.1 mm | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in | 0.24 in |
| Contact Length - Post | 2.79 mm | 2.79 mm |
| Contact Length - Post [x] | 0.11 in | 0.11 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.214 in | 0.214 in |
| Insulation Height | 5.44 mm | 5.44 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 14 | 4 - 14 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 936 | $ 4.30 | |
102523 Series
CONN HEADER R/A 14POS 2.54MM
| Part | Insulation Material | Mounting Type | Contact Length - Post [x] | Contact Length - Post | Shrouding | Contact Length - Mating | Contact Length - Mating [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Number of Rows | Current Rating (Amps) | Contact Shape | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Pitch - Mating | Pitch - Mating | Connector Type | Number of Positions | Material Flammability Rating | Contact Material | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Contact Finish - Post | Insulation Height | Insulation Height | Termination | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-102523-2 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | 14 | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin | 0.214 in | 5.44 mm | Solder | |
TE Connectivity AMP Connectors 102523-6 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | 8 | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin-Lead | 0.214 in | 5.44 mm | Solder | Tin-Lead |
TE Connectivity AMP Connectors 5-102523-3 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin | 0.214 in | 5.44 mm | Solder | ||
TE Connectivity AMP Connectors 5-102523-4 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | 6 | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin | 0.214 in | 5.44 mm | Solder | |
TE Connectivity AMP Connectors 5-102523-6 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | 8 | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin | 0.214 in | 5.44 mm | Solder | |
TE Connectivity AMP Connectors 5-102523-8 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | 10 | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin | 0.214 in | 5.44 mm | Solder | |
TE Connectivity AMP Connectors 102523-3 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin-Lead | 0.214 in | 5.44 mm | Solder | Tin-Lead | |
TE Connectivity AMP Connectors 102523-8 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | 10 | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin-Lead | 0.214 in | 5.44 mm | Solder | Tin-Lead |
TE Connectivity AMP Connectors 102523-1 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | 4 | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin-Lead | 0.214 in | 5.44 mm | Solder | Tin-Lead |
TE Connectivity AMP Connectors 5-102523-1 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | 4 | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin | 0.214 in | 5.44 mm | Solder | |
TE Connectivity AMP Connectors 6-102523-0 | Thermoplastic | Through Hole, Right Angle | 0.11 in | 2.79 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.54 çm | 100 çin | Board to Board, Cable | 1 | 3 A | Square | Push-Pull | -65 ░C | 105 ░C | Black | 0.1 in | 2.54 mm | Header | 12 | UL94 V-0 | Phosphor Bronze | All | 2.54 µm | 100 µin | Male Pin | Tin | 0.214 in | 5.44 mm | Solder |
Description
General part information
102523 Series
Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
