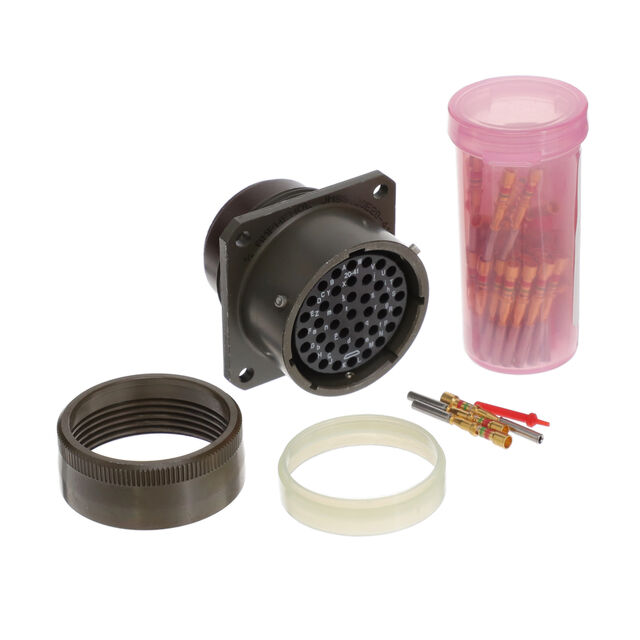

MS3120E20-41S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3120E20-41S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3120E20-41S | MS3120E20 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | - | Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 41 | 39 - 41 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 20 |
| Shell Size - Insert | - | 16 |
| Shell Size - Insert [Max] | 41 | 39 - 41 |
| Shell Size - Insert [Min] | 20 | 20 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 258.34 | |
| 10 | $ 239.39 | |||
| 25 | $ 230.78 | |||
MS3120E20 Series
MIL-26482 MS/PT/CMB RECEPT
| Part | Termination | Color | Shell Finish | Shell Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Contact Finish - Mating | Grade | Connector Type | Fastening Type | Mounting Feature | Voltage Rating | Primary Material | Applications | Orientation | Current Rating (Amps) | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Qualification | Ingress Protection | Insert Material | Contact Material | Number of Positions | Backshell Material, Plating | Features | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3120E20-41P | Crimp | Olive Drab | Olive Drab Chromate over Cadmium | Aluminum | 41 | -55 °C | 125 °C | Unshielded | Gold | Military | Male Pins, Receptacle | Bayonet Lock | Flange | 600 VAC | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | N | 7.5 A | 20 | 41 | MIL-DTL-26482 Series I | Environment Resistant | Neoprene | Copper Alloy | |||||
Amphenol Industrial Operations MS3120E20-16P | Crimp | Olive Drab | Olive Drab Chromate over Cadmium | Aluminum | -55 °C | 125 °C | Unshielded | Gold | Military | Male Pins, Receptacle | Bayonet Lock | Flange | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | N | MIL-DTL-26482 Series I | Environment Resistant | Neoprene | Copper Alloy | 16 | Aluminum, Olive Drab Chromate over Cadmium | Backshell | 20 | 16 | |||||
Amphenol Industrial Operations MS3120E20-41S | Crimp | Olive Drab | Olive Drab Chromate over Cadmium | Aluminum | 41 | -55 °C | 125 °C | Unshielded | Gold | Military | Receptacle, Female Sockets | Bayonet Lock | Flange | 600 VAC | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | N | 7.5 A | 20 | 41 | MIL-DTL-26482 Series I | Environment Resistant | Neoprene | Copper Alloy | |||||
Amphenol Industrial Operations MS3120E20-39P | Crimp | Olive Drab | Olive Drab Chromate over Cadmium | Aluminum | 39 | -55 °C | 125 °C | Unshielded | Gold | Military | Male Pins, Receptacle | Bayonet Lock | Flange | 600 VAC | Metal | Aerospace, Industrial, Instrumentation, Mass Transit, Military | N | 7.5 A, 13 A | 20 | 39 | MIL-DTL-26482 Series I | Environment Resistant | Neoprene | Copper Alloy | |||||
Amphenol Industrial Operations MS3120E20-39P(LC) | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3120E20-41S(LC) |
Description
General part information
MS3120E20 Series
41 Position Circular Connector Receptacle, Female Sockets Crimp
