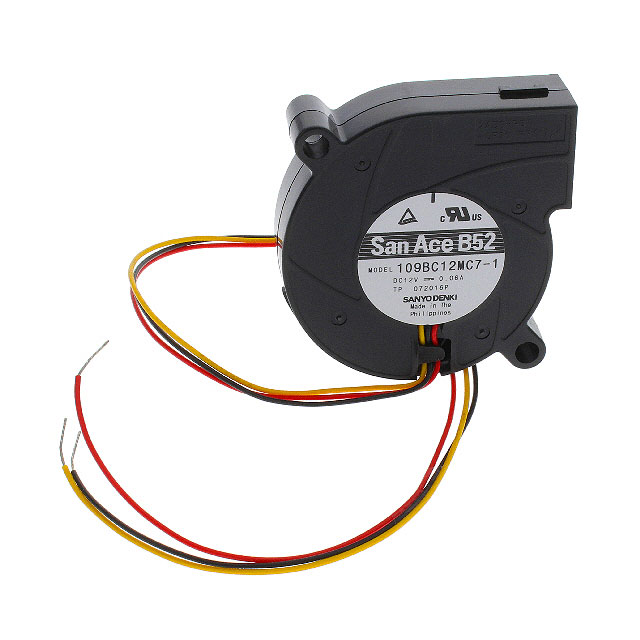

109BC12MC7-1

Active

Sanyo Denki America Inc.

FAN BLOWER 51X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSmoke Detection System G Proof Fan Catalog +2

109BC12MC7-1

Active

Sanyo Denki America Inc.

FAN BLOWER 51X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsSmoke Detection System G Proof Fan Catalog +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.43
		10	$ 12.87
		25	$ 12.29
		50	$ 12.11

Description

General part information

109BC12 Series

Fan Blower 12VDC Square/Rounded - 51mm L x 52.6mm H Ball 3.2 CFM (0.090mł/min) 3 Wire Leads

Documents

Technical documentation and resources

Smoke Detection System

Datasheet

G Proof Fan Catalog

Datasheet

San Ace B52 12V Design Change Notification

Number System Blower

Related Document

Specification	109BC12MC7-1	109BC12 Series

Air Flow	3.2 CFM	3.2 - 4.4 CFM
Air Flow	0.09 m³/min	0.09 - 0.123 m³/min
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	60 mA	60 - 120 mA
Fan Type	Blower	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	35 dB	35 - 43 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	720 mW	1.2 - 720 W
RPM	4600 RPM	4600 - 6200 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	51 mm	51 mm
Size / Dimension [z]	52.6 mm	52.6 mm
Static Pressure	0.4 in H2O	0.4 - 0.86 in H2O
Static Pressure	99.6 Pa	99.6 - 214.2 Pa
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.8 VDC
Voltage Range [Min]	6 VDC	6 VDC
Weight	33.11 g	33.11 g
Weight	0.073 lb	0.073 lb
Width [x]	15 mm	15 mm

Part

Weight

Bearing Type

Approval Agency

Voltage Range [Max]

Voltage Range [Min]

Voltage - Rated

Static Pressure

Current Rating (Amps)

Material - Frame

Lifetime @ Temp.

Features

Material - Blade

Fan Type

Size / Dimension [x]

Size / Dimension [z]

Size / Dimension

Termination

Width [x]

Air Flow

Power (Watts)

Operating Temperature [Min]

Operating Temperature [Max]

Operating Temperature [Min]

Operating Temperature [Max]

Noise

RPM

Sanyo Denki America Inc.

109BC12GD7-1

33.11 g

0.073 lb

Ball

CSA, TUV, UL

13.8 VDC

6 VDC

12 VDC

214.2 Pa

0.86 in H2O

120 mA

Plastic

40000 Hrs

Locked Rotor Sensor

Plastic

Blower

51 mm

52.6 mm

Square/Rounded

3 Wire Leads

15 mm

0.123 m³/min

4.4 CFM

1.44 W

-20 °C

70 °C

-20 C

70 °C

43 dB

6200 RPM

Sanyo Denki America Inc.

109BC12FA7-1

33.11 g

0.073 lb

Ball

CSA, TUV, UL

13.8 VDC

6 VDC

12 VDC

129.5 Pa

0.52 in H2O

Plastic

40000 Hrs

Plastic

Blower

51 mm

52.6 mm

Square/Rounded

2 Wire Leads

15 mm

0.101 m³/min

3.6 CFM

-20 °C

70 °C

-20 C

70 °C

38 dB(A)

5100 RPM

Sanyo Denki America Inc.

109BC12MD7-1

33.11 g

0.073 lb

Ball

CSA, TUV, UL

13.8 VDC

6 VDC

12 VDC

99.6 Pa

0.4 in H2O

60 mA

Plastic

40000 Hrs

Locked Rotor Sensor

Plastic

Blower

51 mm

52.6 mm

Square/Rounded

3 Wire Leads

15 mm

0.09 m³/min

3.2 CFM

720 mW

-20 °C

70 °C

-20 C

70 °C

35 dB

4600 RPM

Sanyo Denki America Inc.

109BC12FD7-1

33.11 g

0.073 lb

Ball

CSA, TUV, UL

13.8 VDC

6 VDC

12 VDC

129.5 Pa

0.52 in H2O

Plastic

40000 Hrs

Locked Rotor Sensor

Plastic

Blower

51 mm

52.6 mm

Square/Rounded

3 Wire Leads

15 mm

0.101 m³/min

3.6 CFM

-20 °C

70 °C

-20 C

70 °C

38 dB(A)

5100 RPM

Sanyo Denki America Inc.

109BC12HD7-1

33.11 g

0.073 lb

Ball

CSA, TUV, UL

13.8 VDC

6 VDC

12 VDC

164.4 Pa

0.66 in H2O

100 mA

Plastic

40000 Hrs

Locked Rotor Sensor

Plastic

Blower

51 mm

52.6 mm

Square/Rounded

3 Wire Leads

15 mm

0.112 m³/min

4 CFM

1.2 W

-20 °C

70 °C

-20 C

70 °C

40 dB(A)

5600 RPM

Sanyo Denki America Inc.

109BC12HA7-1

33.11 g

0.073 lb

Ball

CSA, TUV, UL

13.8 VDC

6 VDC

12 VDC

164.4 Pa

0.66 in H2O

100 mA

Plastic

40000 Hrs

Plastic

Blower

51 mm

52.6 mm

Square/Rounded

2 Wire Leads

15 mm

0.112 m³/min

4 CFM

1.2 W

-20 °C

70 °C

-20 C

70 °C

40 dB(A)

5600 RPM

Sanyo Denki America Inc.

109BC12MC7-1

33.11 g

0.073 lb

Ball

CSA, TUV, UL

13.8 VDC

6 VDC

12 VDC

99.6 Pa

0.4 in H2O

60 mA

Plastic

40000 Hrs

Locked Rotor Protection, Speed Sensor (Tach)

Plastic

Blower

51 mm

52.6 mm

Square/Rounded

3 Wire Leads

15 mm

0.09 m³/min

3.2 CFM

720 mW

-20 °C

70 °C

-20 C

70 °C

35 dB

4600 RPM

Sanyo Denki America Inc.

109BC12HC7-1

33.11 g

0.073 lb

Ball

CSA, TUV, UL

13.8 VDC

6 VDC

12 VDC

164.4 Pa

0.66 in H2O

100 mA

Plastic

40000 Hrs

Locked Rotor Protection, Speed Sensor (Tach)

Plastic

Blower

51 mm

52.6 mm

Square/Rounded

3 Wire Leads

15 mm

0.112 m³/min

4 CFM

1.2 W

-20 °C

70 °C

-20 C

70 °C

40 dB(A)

5600 RPM

Sanyo Denki America Inc.

109BC12GC7-1

33.11 g

0.073 lb

Ball

CSA, TUV, UL

13.8 VDC

6 VDC

12 VDC

214.2 Pa

0.86 in H2O

120 mA

Plastic

40000 Hrs

Locked Rotor Protection, Speed Sensor (Tach)

Plastic

Blower

51 mm

52.6 mm

Square/Rounded

3 Wire Leads

15 mm

0.123 m³/min

4.4 CFM

1.44 W

-20 °C

70 °C

-20 C

70 °C

43 dB

6200 RPM

Part	Weight	Weight	Bearing Type	Approval Agency	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Static Pressure	Static Pressure	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Features	Material - Blade	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Termination	Width [x]	Air Flow	Air Flow	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	RPM
Sanyo Denki America Inc. 109BC12GD7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	214.2 Pa	0.86 in H2O	120 mA	Plastic	40000 Hrs	Locked Rotor Sensor	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.123 m³/min	4.4 CFM	1.44 W	-20 °C	70 °C	-20 C	70 °C	43 dB	6200 RPM
Sanyo Denki America Inc. 109BC12FA7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	129.5 Pa	0.52 in H2O		Plastic	40000 Hrs		Plastic	Blower	51 mm	52.6 mm	Square/Rounded	2 Wire Leads	15 mm	0.101 m³/min	3.6 CFM		-20 °C	70 °C	-20 C	70 °C	38 dB(A)	5100 RPM
Sanyo Denki America Inc. 109BC12MD7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	99.6 Pa	0.4 in H2O	60 mA	Plastic	40000 Hrs	Locked Rotor Sensor	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.09 m³/min	3.2 CFM	720 mW	-20 °C	70 °C	-20 C	70 °C	35 dB	4600 RPM
Sanyo Denki America Inc. 109BC12FD7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	129.5 Pa	0.52 in H2O		Plastic	40000 Hrs	Locked Rotor Sensor	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.101 m³/min	3.6 CFM		-20 °C	70 °C	-20 C	70 °C	38 dB(A)	5100 RPM
Sanyo Denki America Inc. 109BC12HD7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	164.4 Pa	0.66 in H2O	100 mA	Plastic	40000 Hrs	Locked Rotor Sensor	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.112 m³/min	4 CFM	1.2 W	-20 °C	70 °C	-20 C	70 °C	40 dB(A)	5600 RPM
Sanyo Denki America Inc. 109BC12HA7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	164.4 Pa	0.66 in H2O	100 mA	Plastic	40000 Hrs		Plastic	Blower	51 mm	52.6 mm	Square/Rounded	2 Wire Leads	15 mm	0.112 m³/min	4 CFM	1.2 W	-20 °C	70 °C	-20 C	70 °C	40 dB(A)	5600 RPM
Sanyo Denki America Inc. 109BC12MC7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	99.6 Pa	0.4 in H2O	60 mA	Plastic	40000 Hrs	Locked Rotor Protection, Speed Sensor (Tach)	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.09 m³/min	3.2 CFM	720 mW	-20 °C	70 °C	-20 C	70 °C	35 dB	4600 RPM
Sanyo Denki America Inc. 109BC12HC7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	164.4 Pa	0.66 in H2O	100 mA	Plastic	40000 Hrs	Locked Rotor Protection, Speed Sensor (Tach)	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.112 m³/min	4 CFM	1.2 W	-20 °C	70 °C	-20 C	70 °C	40 dB(A)	5600 RPM
Sanyo Denki America Inc. 109BC12GC7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	214.2 Pa	0.86 in H2O	120 mA	Plastic	40000 Hrs	Locked Rotor Protection, Speed Sensor (Tach)	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.123 m³/min	4.4 CFM	1.44 W	-20 °C	70 °C	-20 C	70 °C	43 dB	6200 RPM
