109BC12HA7-1

Active

Sanyo Denki America Inc.

FAN BLOWER 51X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsSmoke Detection System G Proof Fan Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109BC12HA7-1	109BC12 Series

Air Flow	0.112 m³/min	0.09 - 0.123 m³/min
Air Flow	4 CFM	3.2 - 4.4 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	100 mA	60 - 120 mA
Fan Type	Blower	Blower
Features	-	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	40 dB(A)	35 - 43 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	1.2 W	1.2 - 720 W
RPM	5600 RPM	4600 - 6200 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	51 mm	51 mm
Size / Dimension [z]	52.6 mm	52.6 mm
Static Pressure	0.66 in H2O	0.4 - 0.86 in H2O
Static Pressure	164.4 Pa	99.6 - 214.2 Pa
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.8 VDC
Voltage Range [Min]	6 VDC	6 VDC
Weight	33.11 g	33.11 g
Weight	0.073 lb	0.073 lb
Width [x]	15 mm	15 mm

109BC12 Series

FAN BLOWER 51X15MM 12VDC WIRE

Part	Weight	Weight	Bearing Type	Approval Agency	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Static Pressure	Static Pressure	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Features	Material - Blade	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Termination	Width [x]	Air Flow	Air Flow	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	RPM
Sanyo Denki America Inc. 109BC12GD7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	214.2 Pa	0.86 in H2O	120 mA	Plastic	40000 Hrs	Locked Rotor Sensor	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.123 m³/min	4.4 CFM	1.44 W	-20 °C	70 °C	-20 C	70 °C	43 dB	6200 RPM
Sanyo Denki America Inc. 109BC12FA7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	129.5 Pa	0.52 in H2O		Plastic	40000 Hrs		Plastic	Blower	51 mm	52.6 mm	Square/Rounded	2 Wire Leads	15 mm	0.101 m³/min	3.6 CFM		-20 °C	70 °C	-20 C	70 °C	38 dB(A)	5100 RPM
Sanyo Denki America Inc. 109BC12MD7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	99.6 Pa	0.4 in H2O	60 mA	Plastic	40000 Hrs	Locked Rotor Sensor	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.09 m³/min	3.2 CFM	720 mW	-20 °C	70 °C	-20 C	70 °C	35 dB	4600 RPM
Sanyo Denki America Inc. 109BC12FD7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	129.5 Pa	0.52 in H2O		Plastic	40000 Hrs	Locked Rotor Sensor	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.101 m³/min	3.6 CFM		-20 °C	70 °C	-20 C	70 °C	38 dB(A)	5100 RPM
Sanyo Denki America Inc. 109BC12HD7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	164.4 Pa	0.66 in H2O	100 mA	Plastic	40000 Hrs	Locked Rotor Sensor	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.112 m³/min	4 CFM	1.2 W	-20 °C	70 °C	-20 C	70 °C	40 dB(A)	5600 RPM
Sanyo Denki America Inc. 109BC12HA7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	164.4 Pa	0.66 in H2O	100 mA	Plastic	40000 Hrs		Plastic	Blower	51 mm	52.6 mm	Square/Rounded	2 Wire Leads	15 mm	0.112 m³/min	4 CFM	1.2 W	-20 °C	70 °C	-20 C	70 °C	40 dB(A)	5600 RPM
Sanyo Denki America Inc. 109BC12MC7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	99.6 Pa	0.4 in H2O	60 mA	Plastic	40000 Hrs	Locked Rotor Protection, Speed Sensor (Tach)	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.09 m³/min	3.2 CFM	720 mW	-20 °C	70 °C	-20 C	70 °C	35 dB	4600 RPM
Sanyo Denki America Inc. 109BC12HC7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	164.4 Pa	0.66 in H2O	100 mA	Plastic	40000 Hrs	Locked Rotor Protection, Speed Sensor (Tach)	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.112 m³/min	4 CFM	1.2 W	-20 °C	70 °C	-20 C	70 °C	40 dB(A)	5600 RPM
Sanyo Denki America Inc. 109BC12GC7-1	33.11 g	0.073 lb	Ball	CSA, TUV, UL	13.8 VDC	6 VDC	12 VDC	214.2 Pa	0.86 in H2O	120 mA	Plastic	40000 Hrs	Locked Rotor Protection, Speed Sensor (Tach)	Plastic	Blower	51 mm	52.6 mm	Square/Rounded	3 Wire Leads	15 mm	0.123 m³/min	4.4 CFM	1.44 W	-20 °C	70 °C	-20 C	70 °C	43 dB	6200 RPM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.74
		10	$ 16.93
		25	$ 15.93
		50	$ 15.32
		120	$ 14.11
		360	$ 13.21
		600	$ 13.00

Description

General part information

109BC12 Series

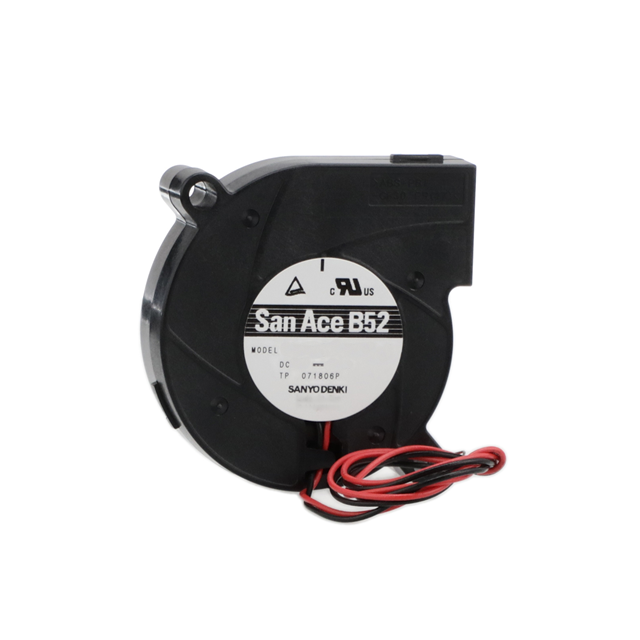

Fan Blower 12VDC Square/Rounded - 51mm L x 52.6mm H Ball 4.0 CFM (0.112m³/min) 2 Wire Leads
